Home/Front loader equipment/Log grapple GENERAL
Захват для бревен GENERAL
Log grapple GENERAL
Log grapple GENERAL
Log grapple GENERAL
Log grapple GENERAL
Log grapple GENERAL
Log grapple GENERAL
Log grapple GENERAL
Log grapple GENERAL
Hot

Log grapple GENERAL

Write a review

25 000 $

  • Delivery: Delivery by our transport
  • Warranty: 12 months
  • Payment: Cashless account (* with VAT)
Quantity In stock

Захват для бревен GENERAL

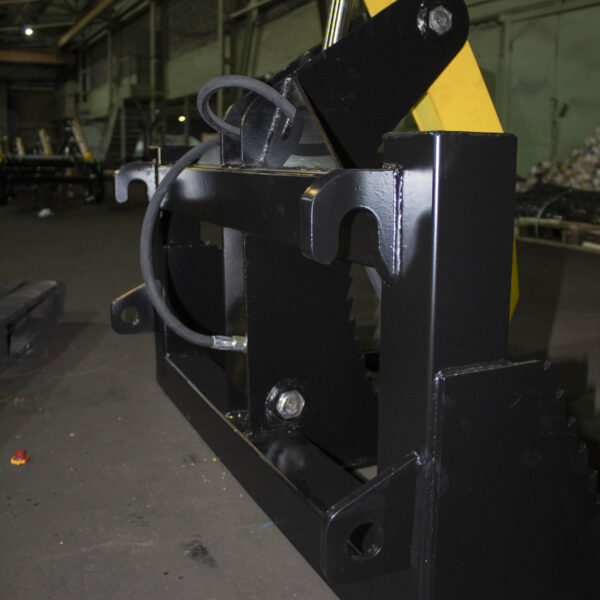

  1. Quick couplings with loader

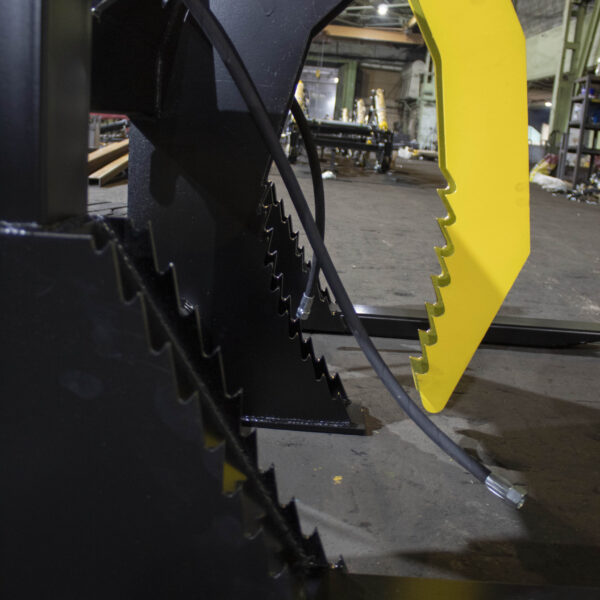

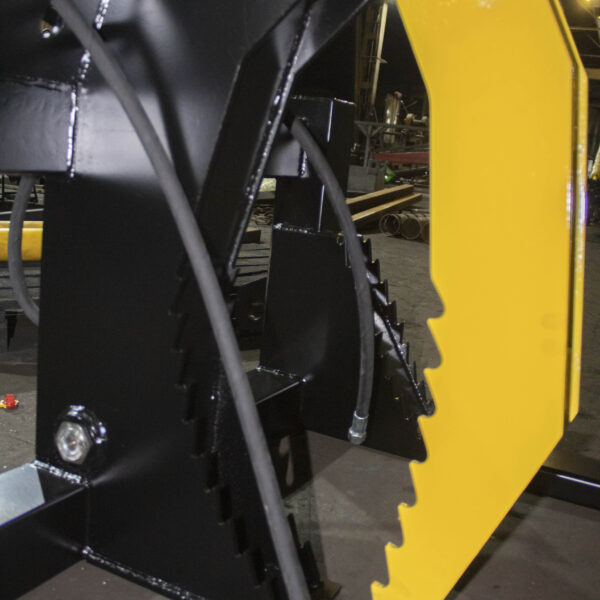

  2. 10 mm thick teeth on grip prevent decks from turning

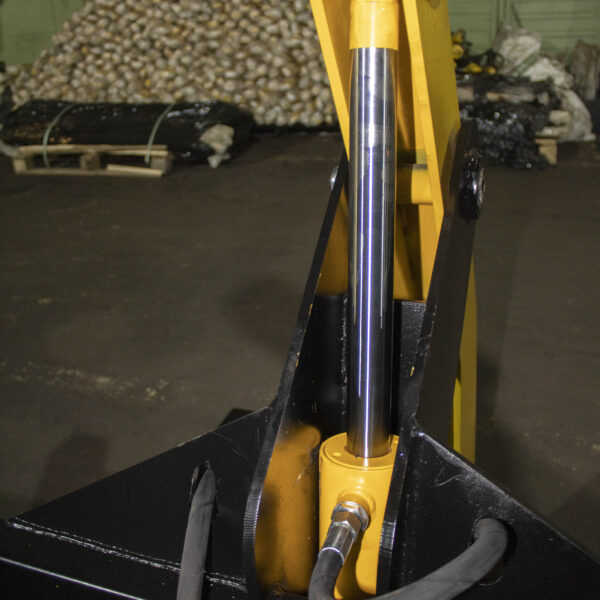

  3. 40-stroke hydraulic cylinder for strong deck grip

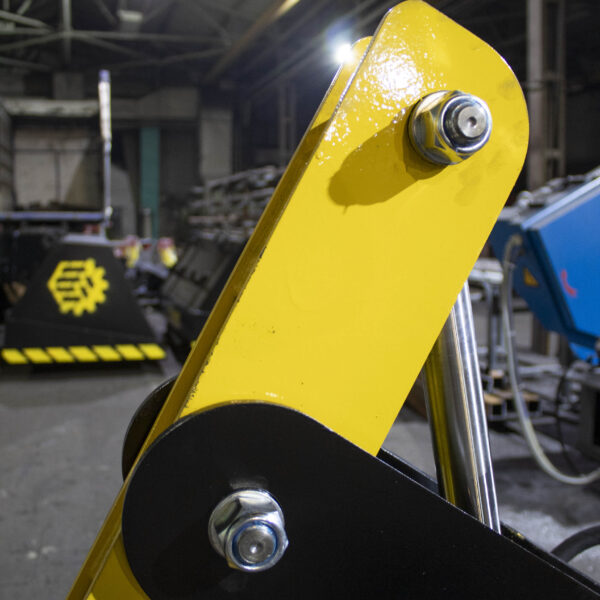

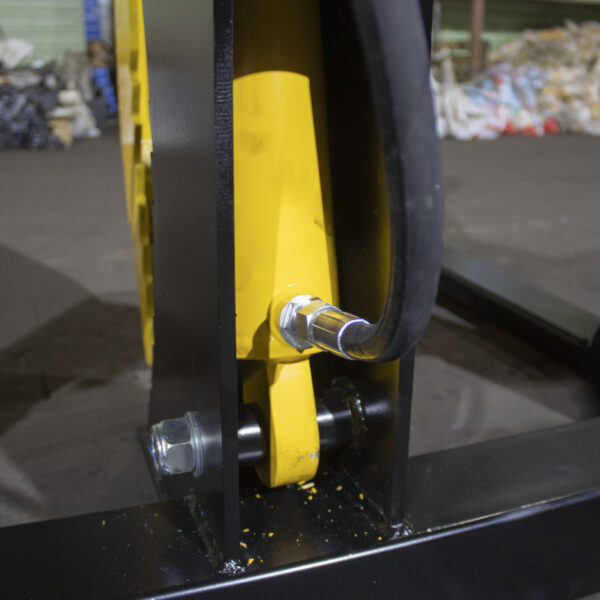

  4. Fingers with grease fittings ensure long-term operation of the unit
  5. Grabs decks up to 70 cm in diameter
  6. Paws withstand loads up to 1500 kg

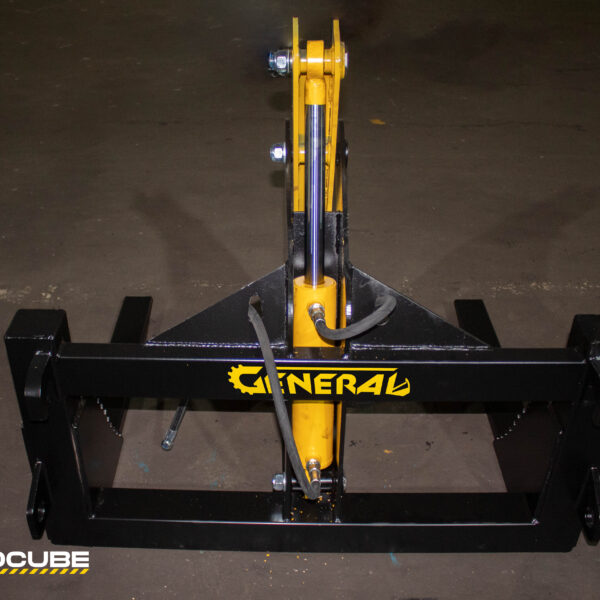

Log grapple GENERAL

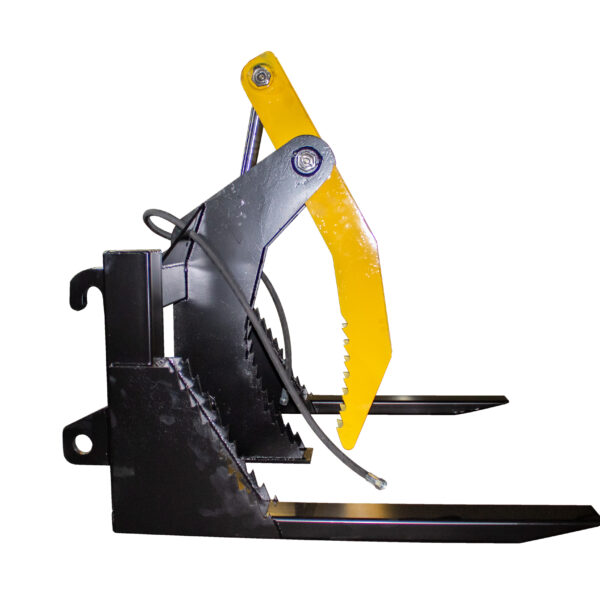

The log grapple is used to grip and move logs, pipes, etc. with a diameter up to 70 cm

Key Benefits

  • Robust and rigid construction withstands loads up to 1500 kg
  • 10 mm thick teeth for a secure grip
  • Powerful hydraulic actuator with hydraulic cylinder with 40 mm rod
  • Lubricated pins for durability and ease of use

Specifications

  • Maximum capture diameter: 70 cm
  • Maximum load: 1500 kg
  • Frame Width: 1.2m
  • Frame wall thickness: 6mm
  • Hydraulic drive: Hydraulic cylinder 80x40x320 mm

High pressure aluminum tubes (Germany)
High pressure two-braid hoses

  • Fingers with grease fittings
Maximum load capacity

1500 кг

Control type

From tractor distributor or joystick

Hydraulic drive

1 шт.

Load capacity

1500 кг

Log diameter

до 70 см

Frame wall thickness

6 мм

Diameter

до 70 см
