- Pins 900 mm long and 40 mm in diameter
- Powerful hydraulic drive
- Reinforced frame
- Quick coupling with loader
Hot
Haylage pitchfork GENERAL
40 000 $
- Delivery: Delivery by our transport
- Warranty: 12 months
- Payment: Cashless account (* with VAT)

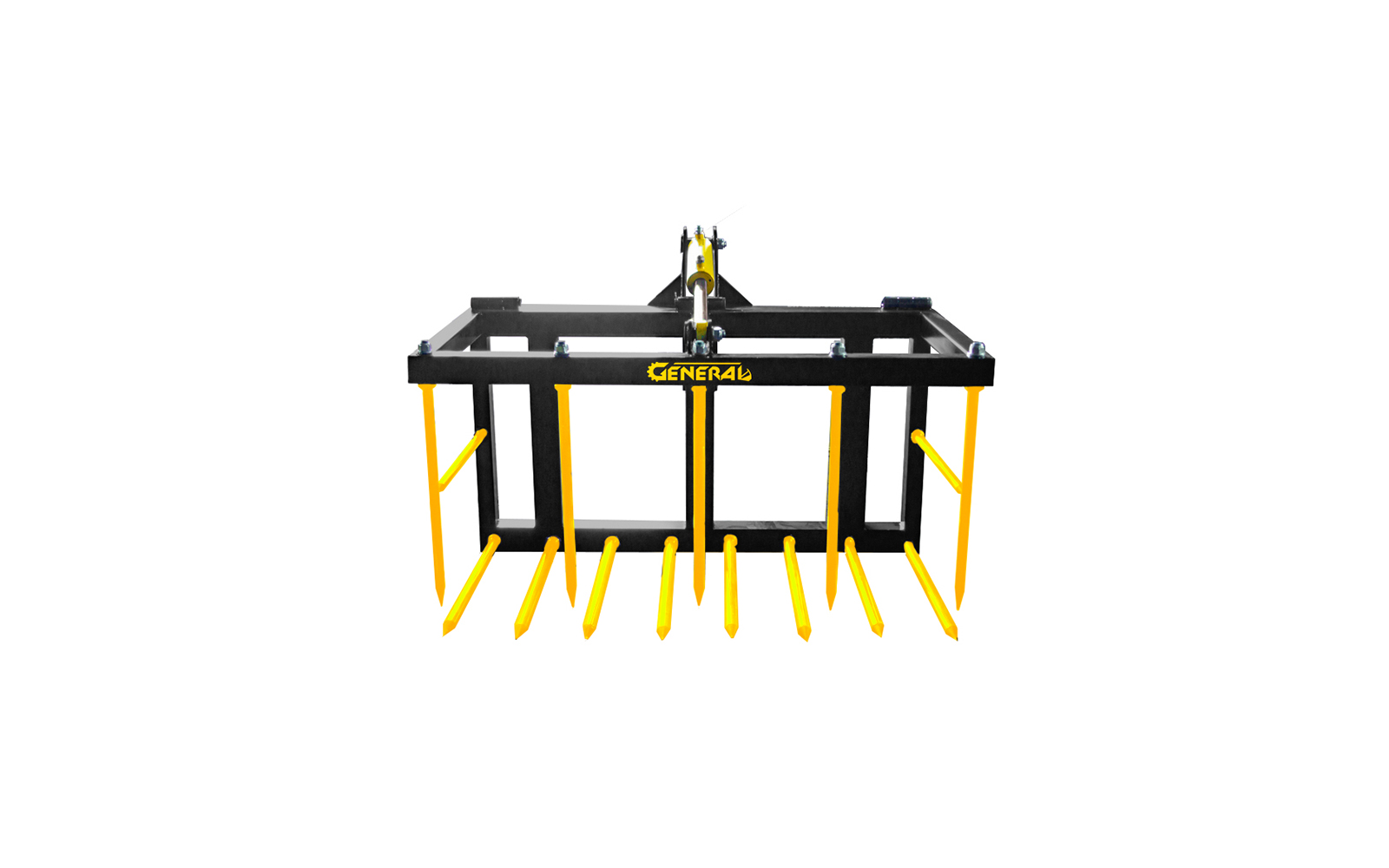

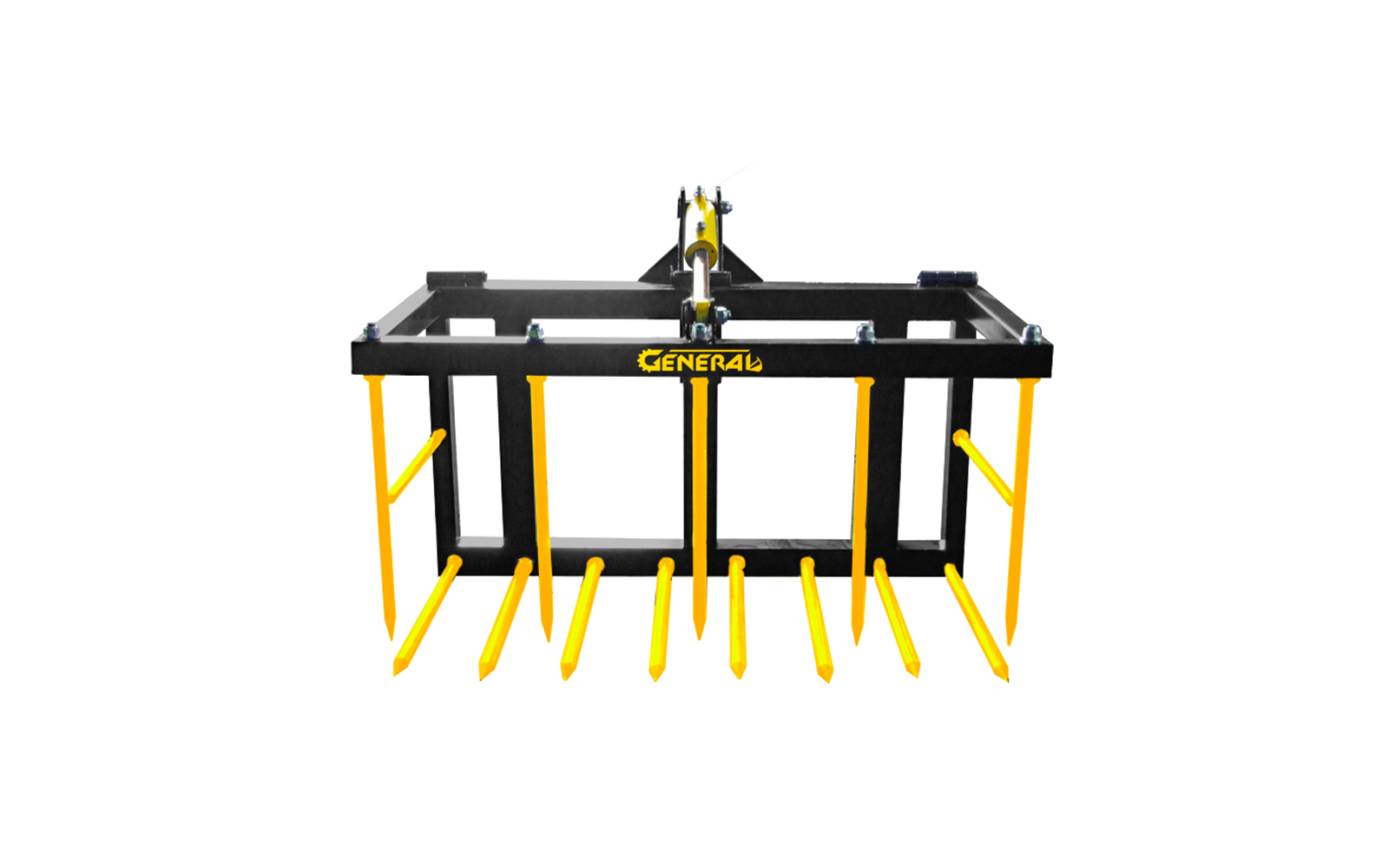

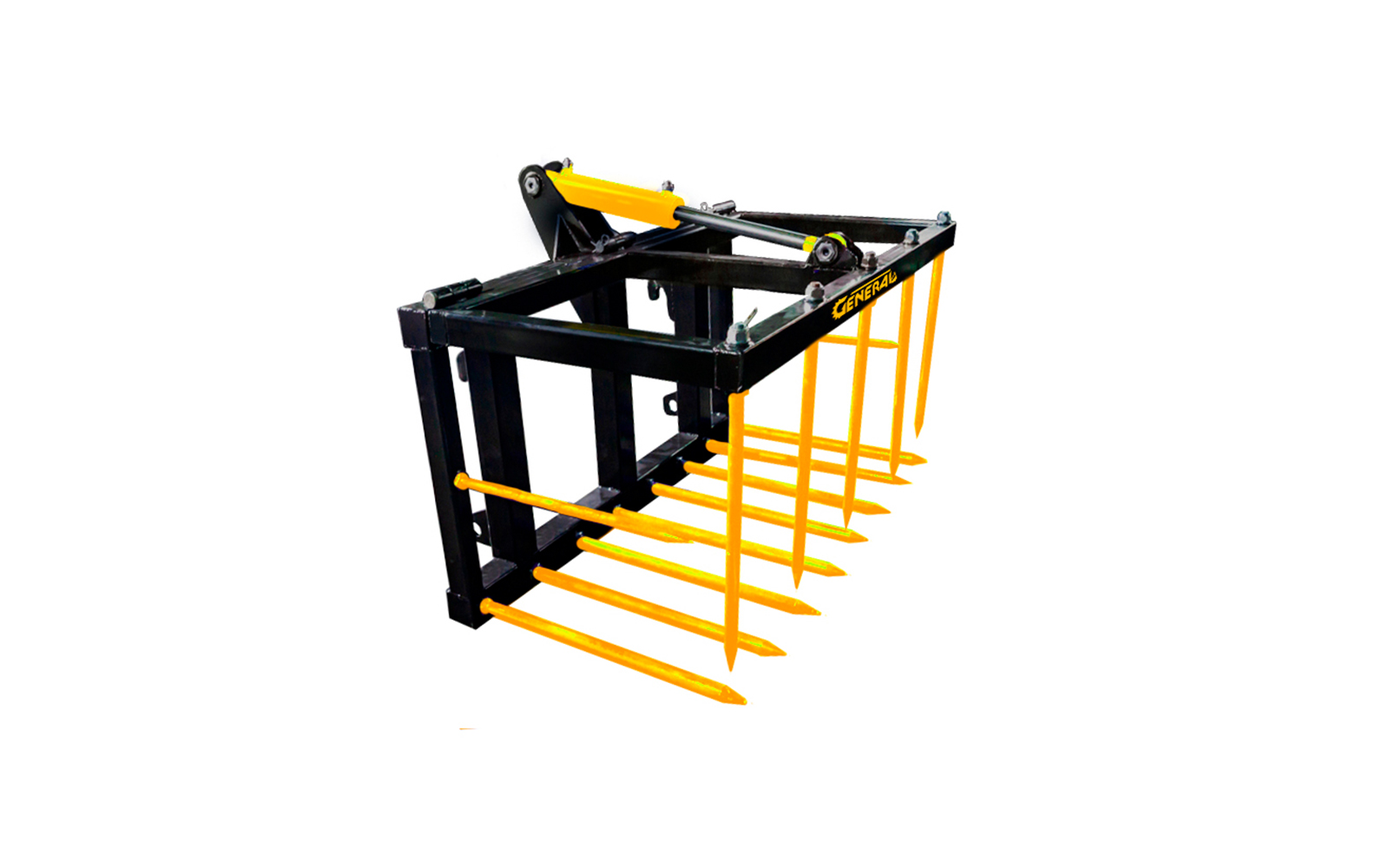

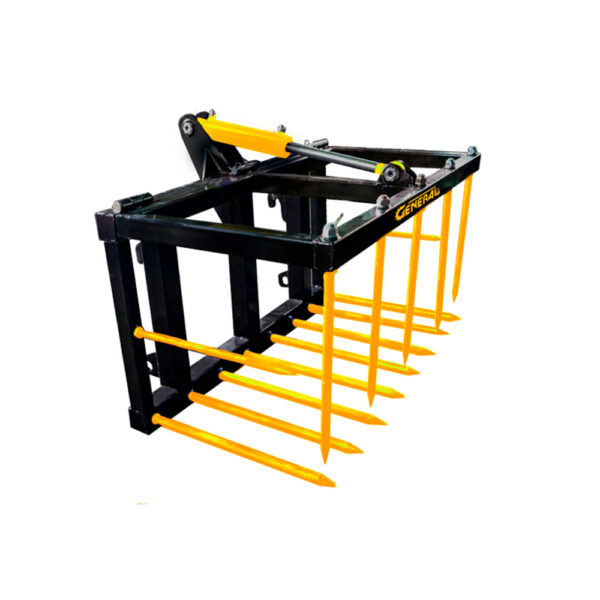

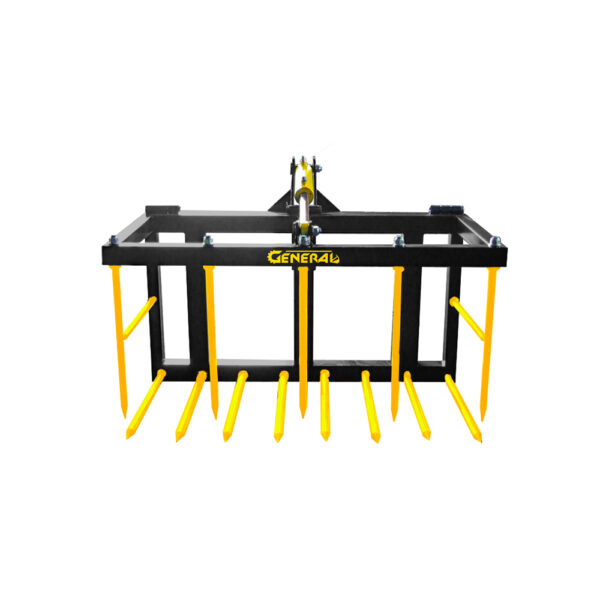

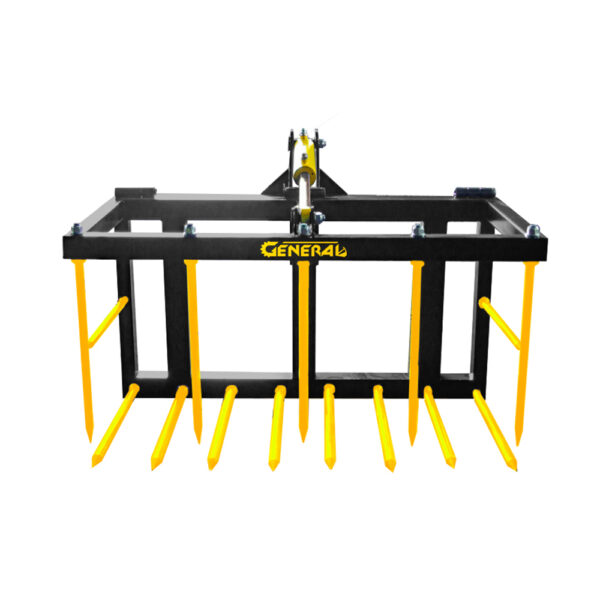

Haylage pitchfork GENERAL
Haylage forks are used to capture and move the required amount of hay, straw, branches, manure, etc.
Key Benefits
- Robust and rigid construction with wall thickness up to 4 mm
- Removable strong pins 900 mm long and 40 mm in diameter
- Powerful hydraulic actuator with hydraulic cylinder with 40 mm rod
- Lubricated pins for durability and ease of use
Specifications
- Width : 1.5 m
- Maximum load: 1500 kg
- Frame wall thickness: 4mm
- Pins: length – 900 mm, diameter – 40 mm
- Hydraulic drive: Hydraulic cylinder 80x40x320 mm
High pressure aluminum tubes (Germany)
High pressure two-braid hoses
- Pins with pins
| Maximum load capacity | 1500 кг |
|---|---|
| Control type | From tractor distributor or joystick |
| Capture width | 1.5 м |
| Hydraulic drive | 1 шт. |
| Load capacity | 1500 кг |
| Width | 1.5 м |
| Frame wall thickness | 4 мм |
| Pins | Diameter – 40 mm, Length – 900 mm |
