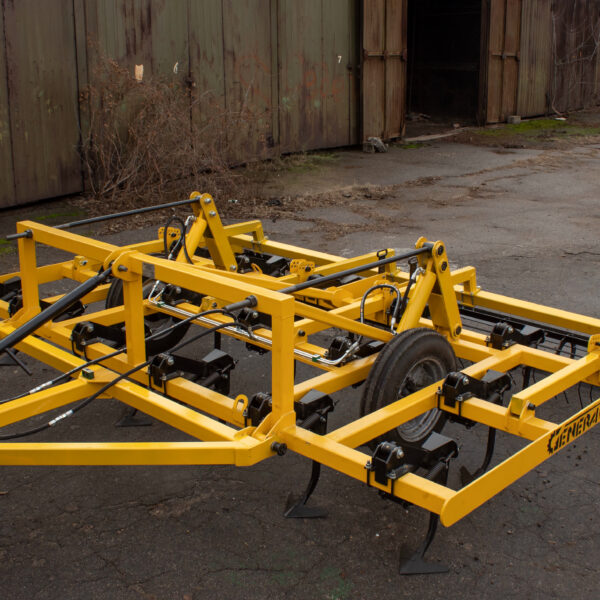

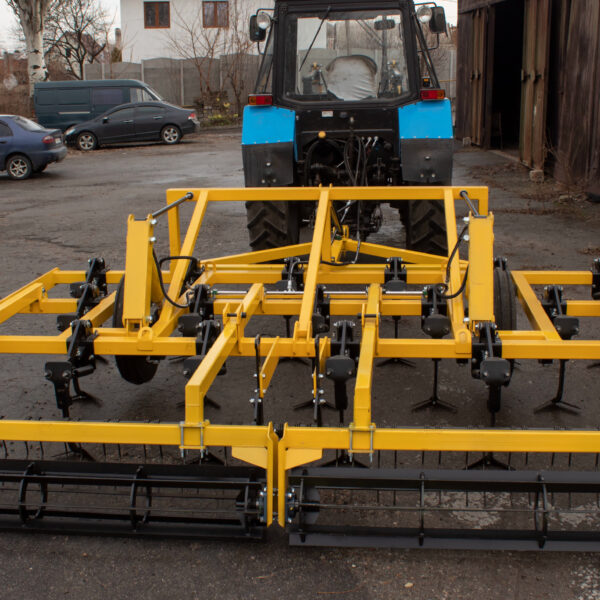

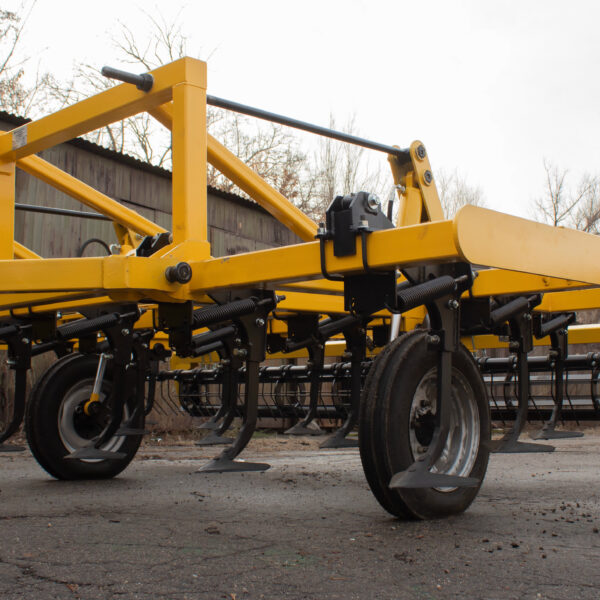

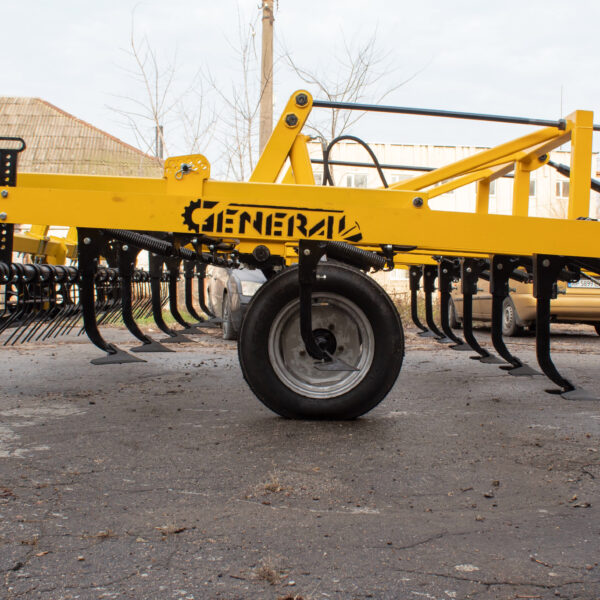

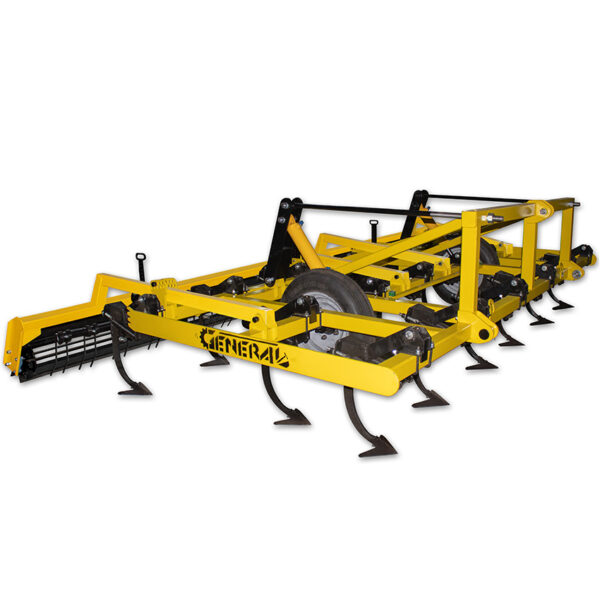

Solid trailed cultivator GENERAL KSP-4 Gryadil

3-row trailed cultivator GENERAL KSP-4 GRADIL

Mounted cultivator GENERAL KSP is universal and is used for pre-sowing cultivation, incorporation of plant residues into the soil and continuous processing of fallows. This cultivator in just one pass across the field provides a complete preparation of the soil for sowing!

This cultivator is equipped with active rigid racks Gryadil with adjustable angle of attack of the paws and safety springs with adjustable stiffness. This type of racks is recommended to be used on heavy wet soil. Thanks to the protective spring mechanism, the racks easily adapt to different types of soil and do not break under critical loads! The working bodies on this model are evenly staggered in three rows, with a distance between the racks of 705 mm. This arrangement of racks provides an impeccable effect of loosening and mixing the soil, while not clogging with weeds and plant debris!

GENERAL KSP combines the simultaneous execution of 7 operations:

• Cleaning steam from weeds with cutting and combing their roots,
• Loosening the soil without turning the layer and incorporating plant residues,
• Crushing clods of earth and leveling the soil with a rake with spring teeth
• Compaction and formation of the ideal structure of the surface layer of the soil with packers to prevent moisture evaporation.

Application range of GENERAL KSP:

• Pre-sowing cultivation and seed bed preparation
• Continuous processing and cleaning of vapors from weeds
• Plowing leveling

Distinctive features of the model

• Uniform staggered arrangement of working bodies with a distance of 705 mm, which prevents clogging with weeds and plant debris!
• Independent stepless adjustment of the cultivation depth of the cultivator on each wheel
• Mechanically independent wheel lifting system due to hydraulic drive
• Direct drive hydraulic cylinders
• Lubricated actuator pins
• Working body with a grease maker for lubricating replaceable bushings
• Quick-release towbar with cotter pin
• Removable drawbar brace with lanyard for adjusting drawbar height

Specifications

• Aggregation method: trailed
• Capture width: 4 m
• Number of rows: 3
• Processing depth: 4-15 cm
• Working bodies:

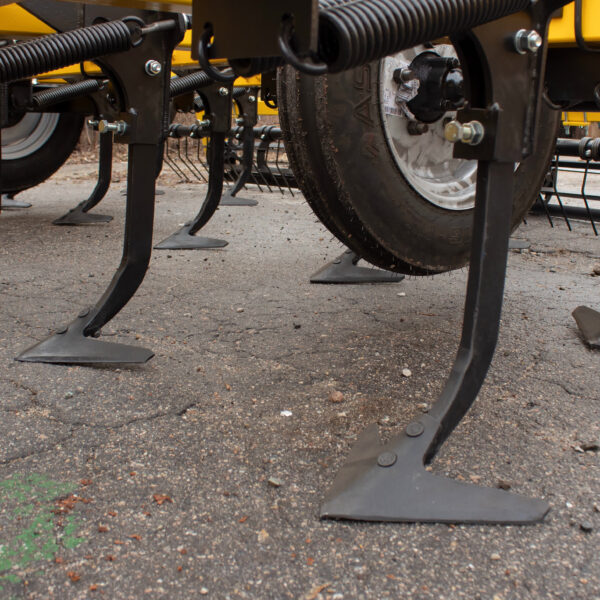

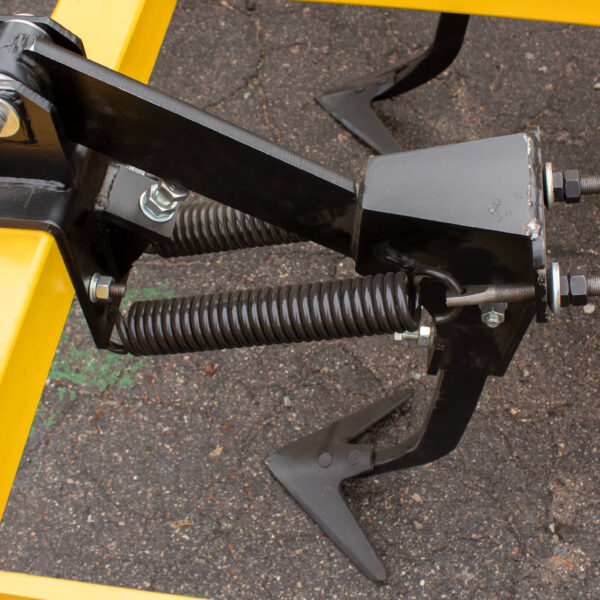

– Rack type: Active rigid “Bed” with a safety spring and adjustment of the angle of attack of the paws
– Bushing with a grease gun for lubricating the replaceable bushings of the working body
– Quantity: 17 pcs.
– Spacing: even staggered 235 mm
– Distance between tines in a row: 705 mm
– Share width: 270 mm
– Shank and tine material: Forged, hardened boron steel with polymer

• ultra-resistant coating

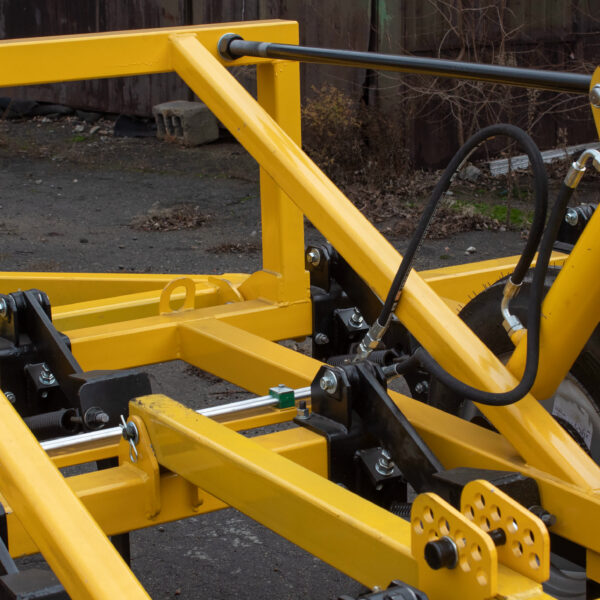

Hydraulic system:

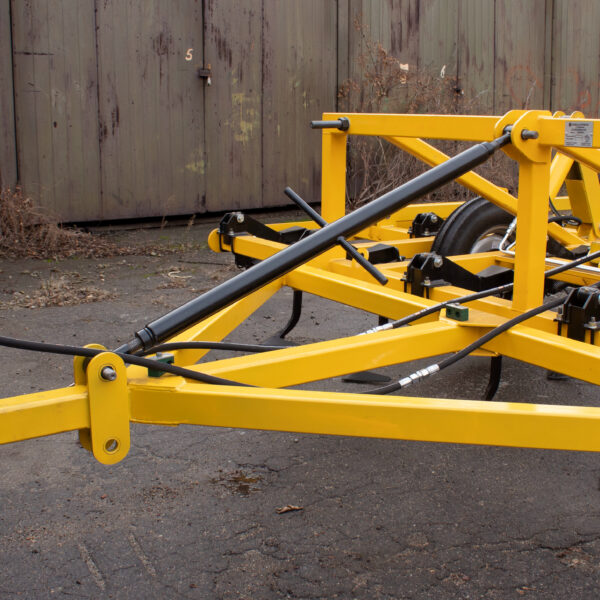

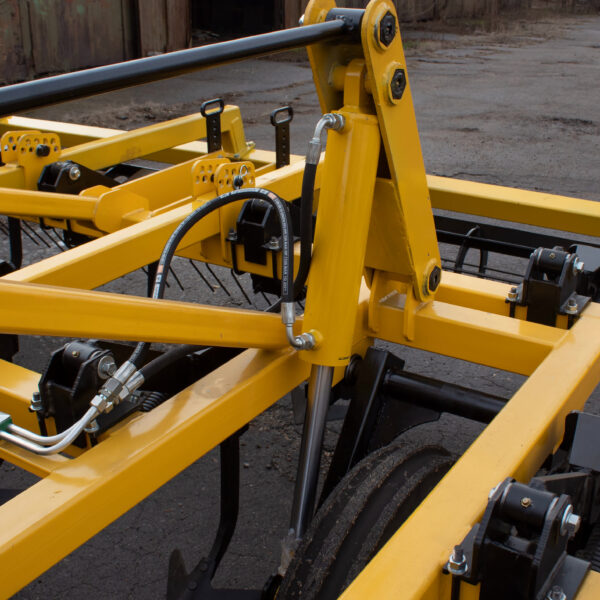

– 2 hydraulic cylinders with a piston of 80 mm and a rod of 40 mm Profmash (Ukraine)
– Hydraulic external high-pressure tubes made of hardened steel

Hansa-Flex (Germany)

– Durable two-braid high-pressure hoses “Agroimpuls” Ukraine.

• Frame with 5 mm wall thickness

Equipment:

– Tine rakes with hard spring teeth 8×320 mm made of hardened steel grade 70

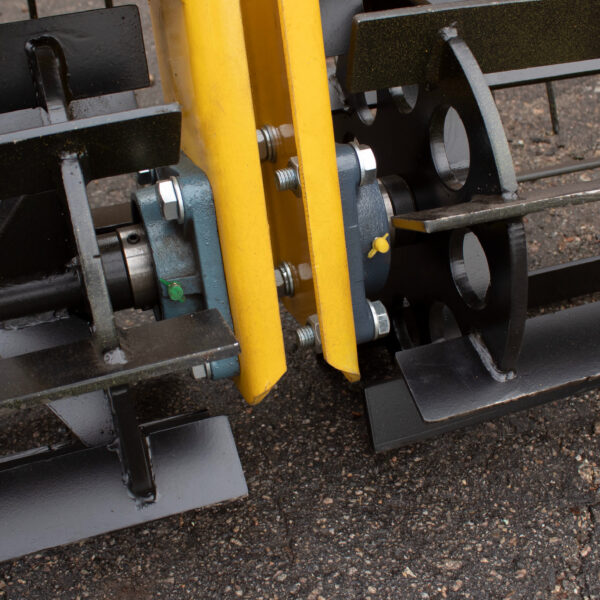

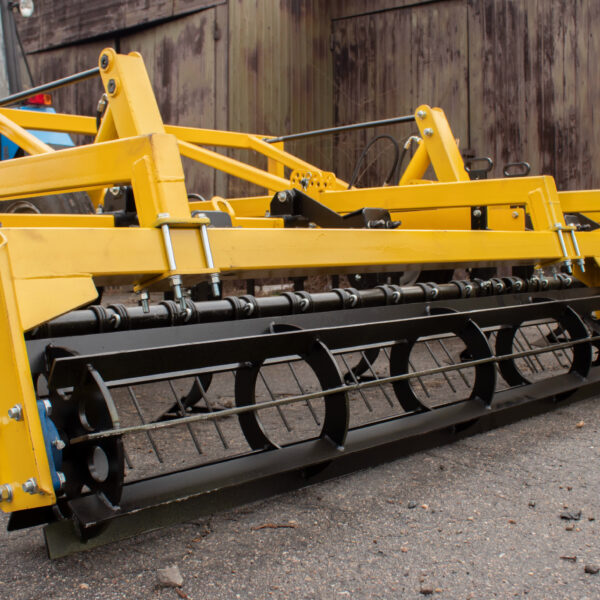

– Press rollers with a diameter of 300 mm, a knife thickness of 6 mm and bearings in a UCF 208 cast iron housing (Japan)

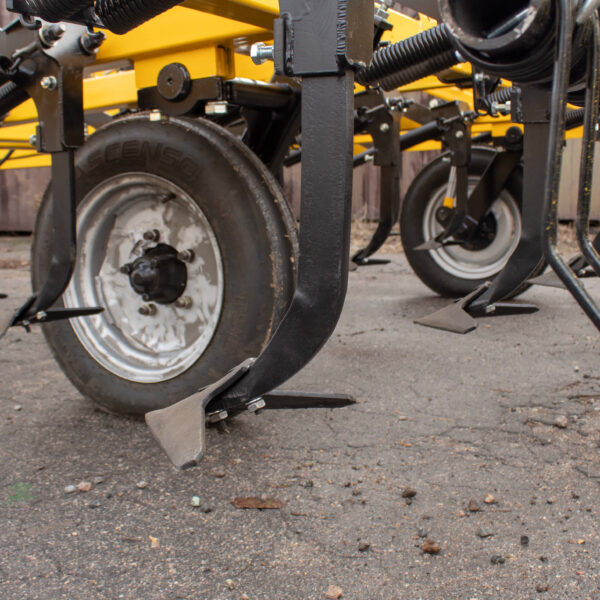

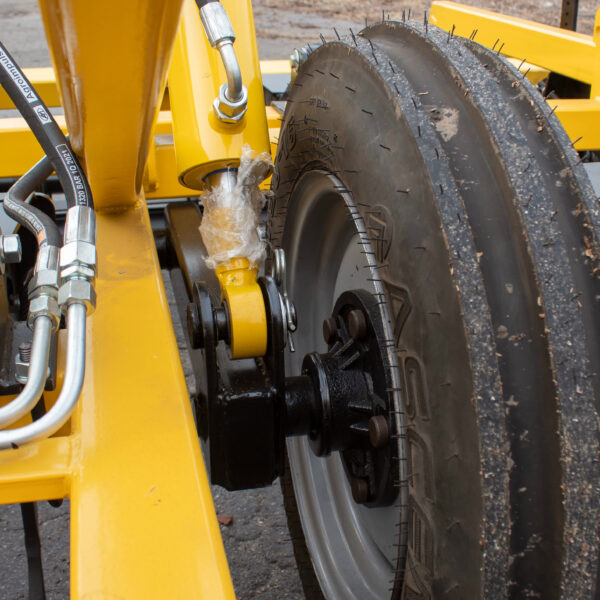

Transport wheels:

– All-purpose tires 5.50 R16 with special cutting for the soil
– Robust cast KPS hubs

• Lanyard
• Lubricated actuator pins
• Pins made of steel 45 with cotter pin

All elements of the cultivator undergo mandatory processing, namely: cleaning, grinding and sandblasting! Before painting, primer and dry with a heat gun! At the end, all parts are covered with a polyurethane coating and dried in a drying chamber!

Functional properties

• Adjustment of the angle of attack and the tension force of the safety springs of the racks “Gryadil”.
• Adjustment of the angle of attack and the depth of processing of the tines.
• Drawbar height adjustment with lanyard
• Independent stepless wheel height adjustment.
• Height adjustment of the press rollers.
• Adjustment of the depth of processing of the cultivator due to the height of the rollers and the height of the wheels.
• Hydraulic lifting and lowering system.
