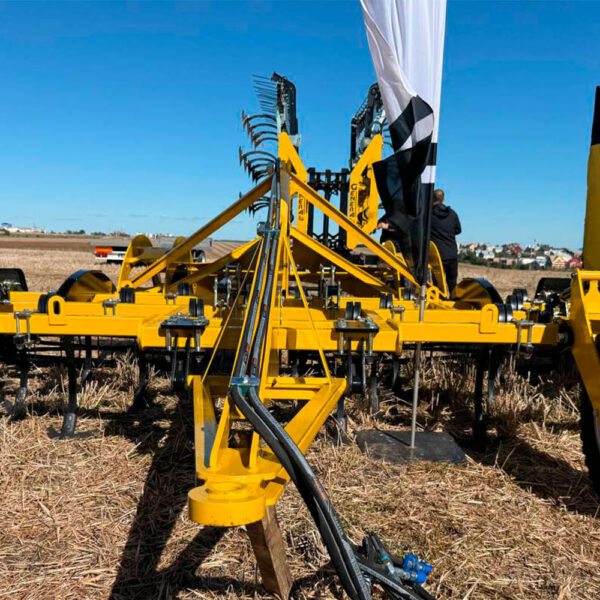

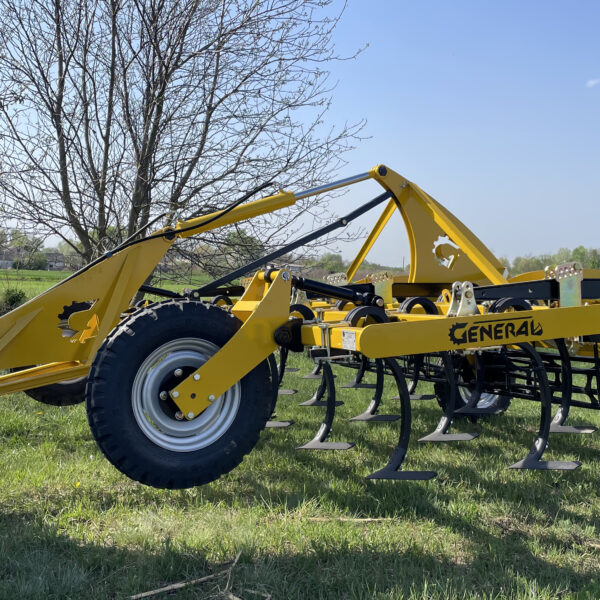

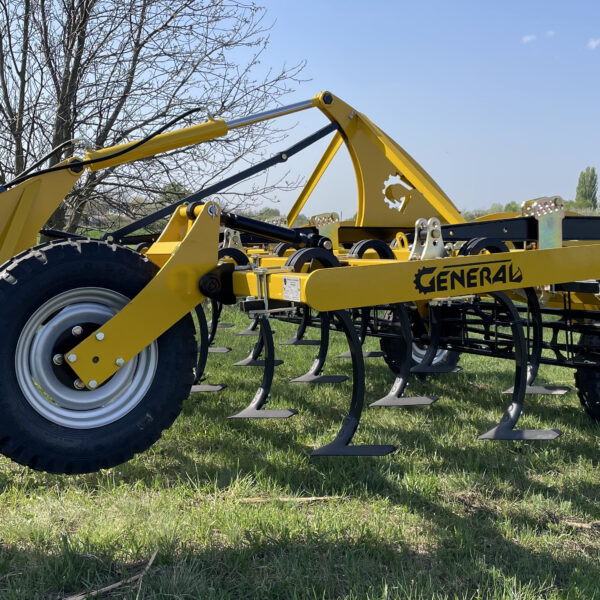

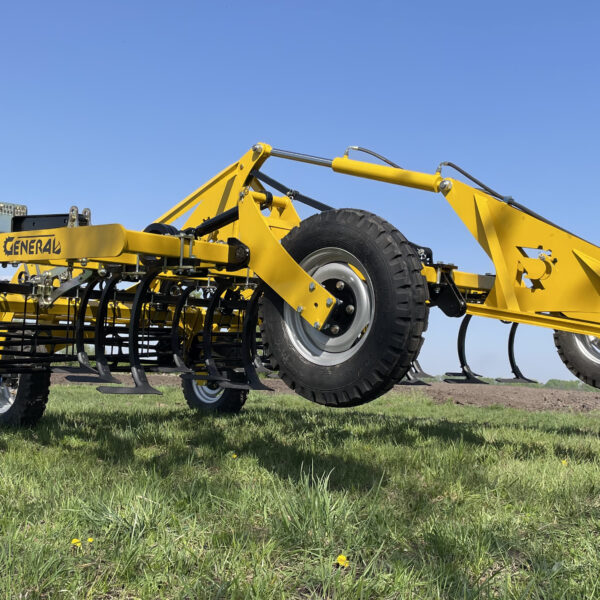

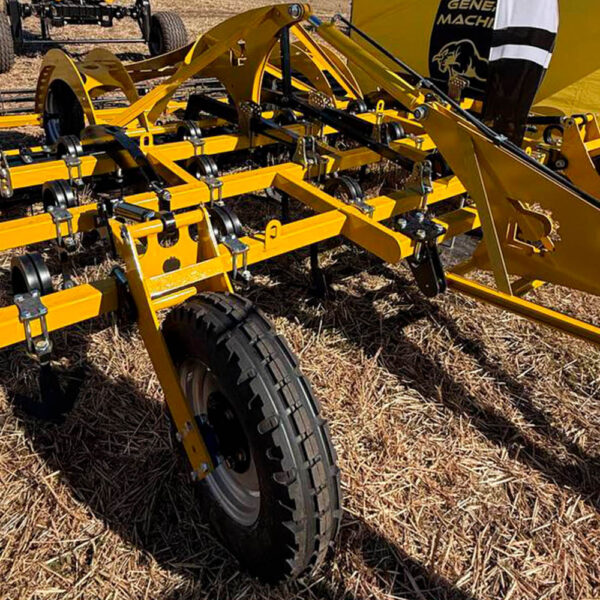

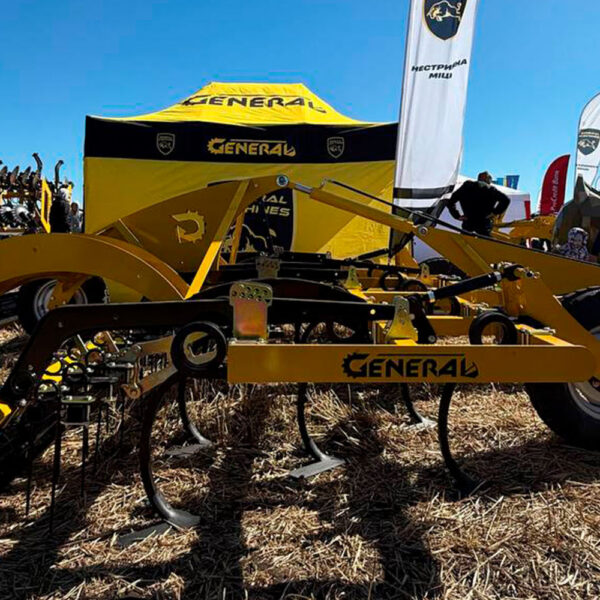

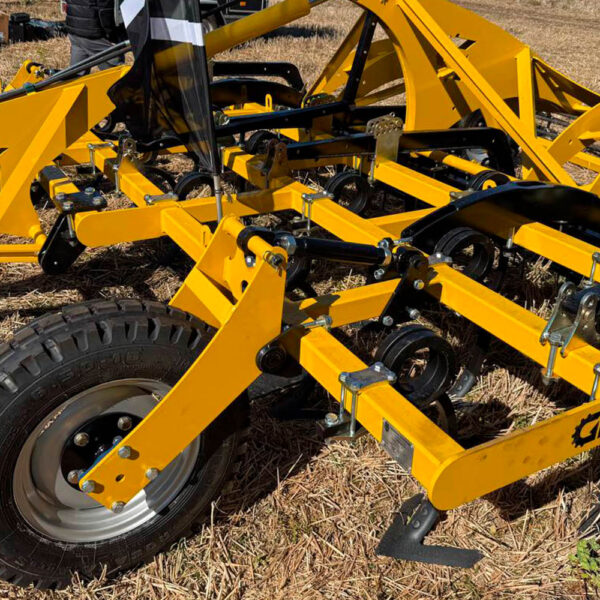

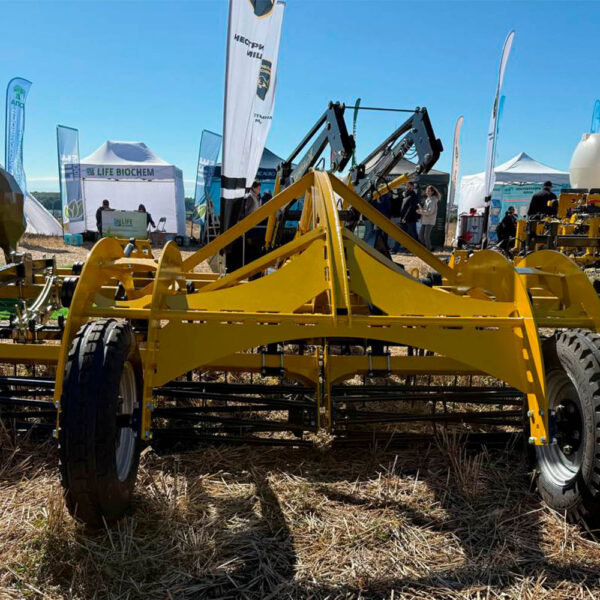

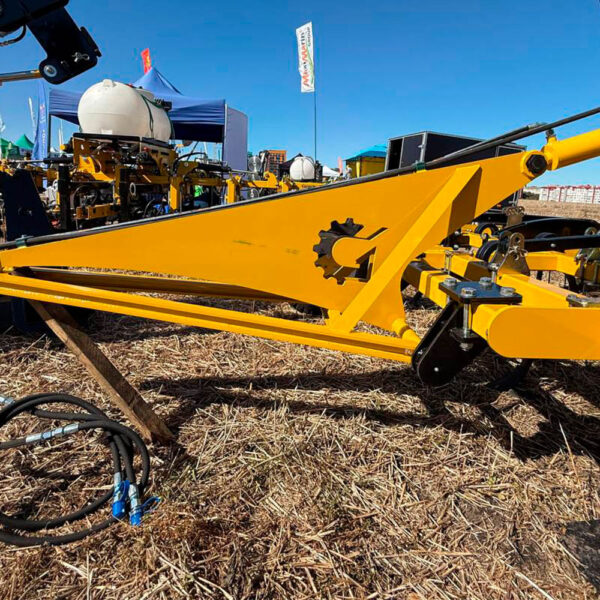

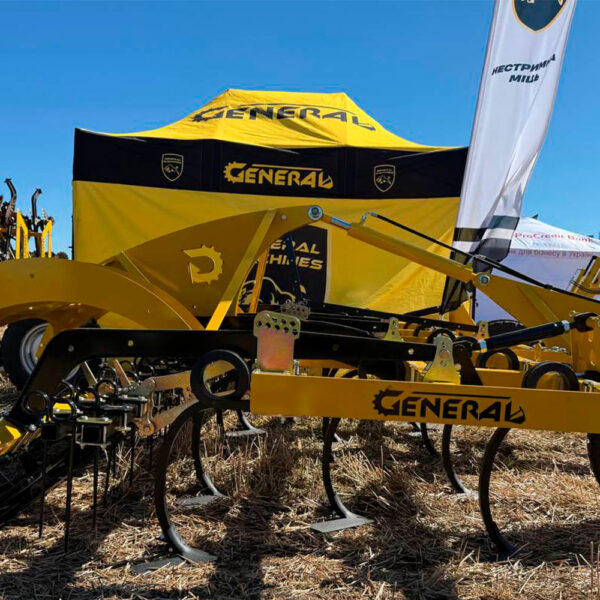

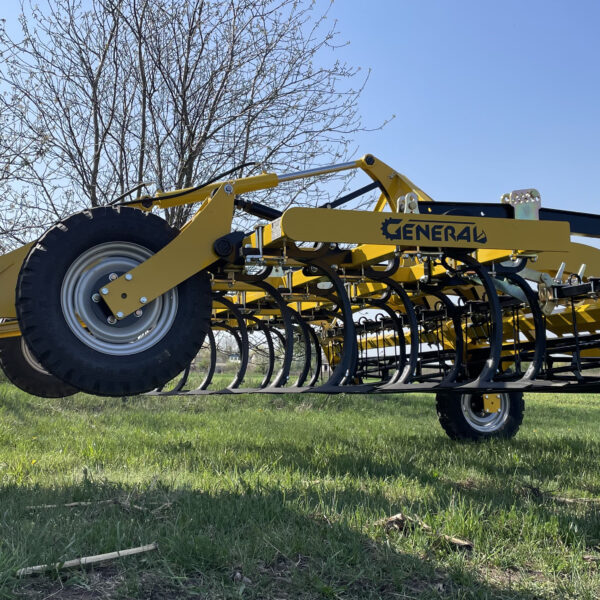

Cultivator 4-row trailed continuous KPS GeneraL 4.0 – Two-hook rack
The trailed cultivator GENERAL KPS is universal and is used for pre-sowing cultivation and continuous steam processing. This cultivator provides complete soil preparation for sowing in just one pass across the field!
GENERAL KNS combines the simultaneous performance of 4 operations:
• cleaning steam from weeds with trimming and combing their roots
• loosening the soil without turning the layer and combing plant residues
• breaking up clods of earth and leveling the soil with a rake with spring teeth
• compaction and formation of the ideal structure of the “sole” and the surface layer of the soil with rolling rollers to prevent moisture evaporation.
The working bodies on this model are evenly arranged in a checkerboard pattern in three rows. This arrangement of the racks provides an impeccable effect of loosening and mixing the soil, while not being clogged with weeds and plant residues!
The range of applications of GENERAL KNS:
• Pre-sowing cultivation and preparation of the seed bed
• Complete processing and cleaning of vapors from weeds
• Leveling of plowing
Specifications
• Aggregation method: Trailed
• Gripping width: 4.0 m
• Number of rows: 4
• Processing depth: 3-12 cm
• Tractor power: from 80 hp

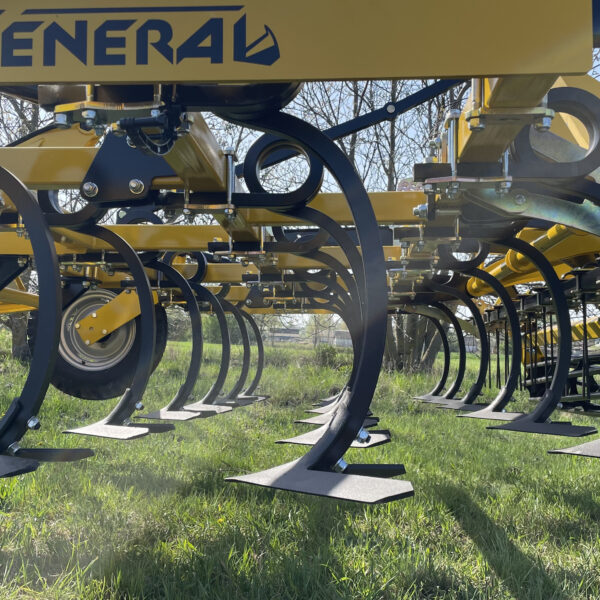

• Type of working body: Two-turn rack
• Number of working bodies: 18
• Step placement of working bodies: uniform, staggered, with a step of 220 mm (660 mm in one row!)
• Thickness of the profile tube of the frame: 5 mm

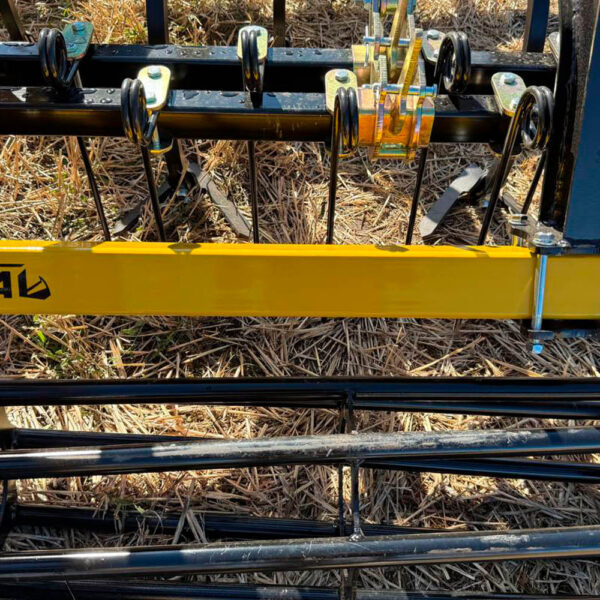

• Rake: two-row with floating mode, made of hardened steel 70

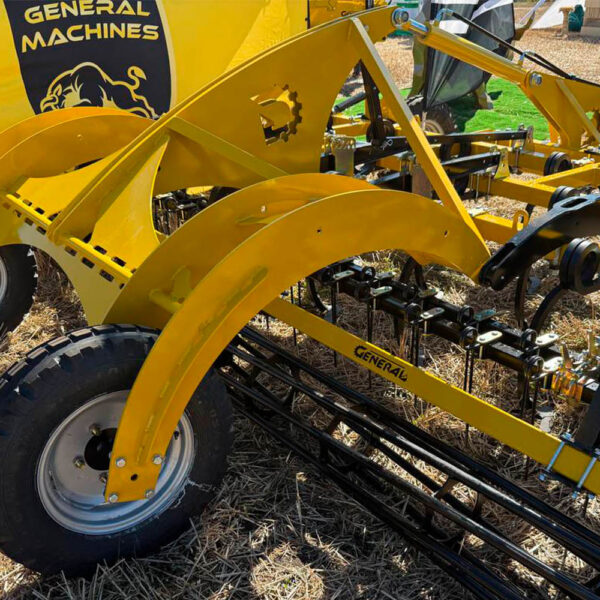

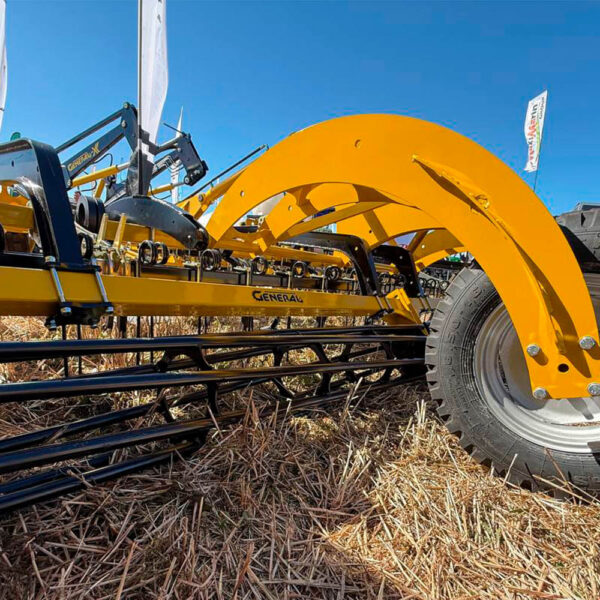

• Roller: double, with a diameter of 320 mm, one of 4 types (pipe straight, pipe spiral, strip straight, strip spiral)
◦ Weight: 1200 kg
