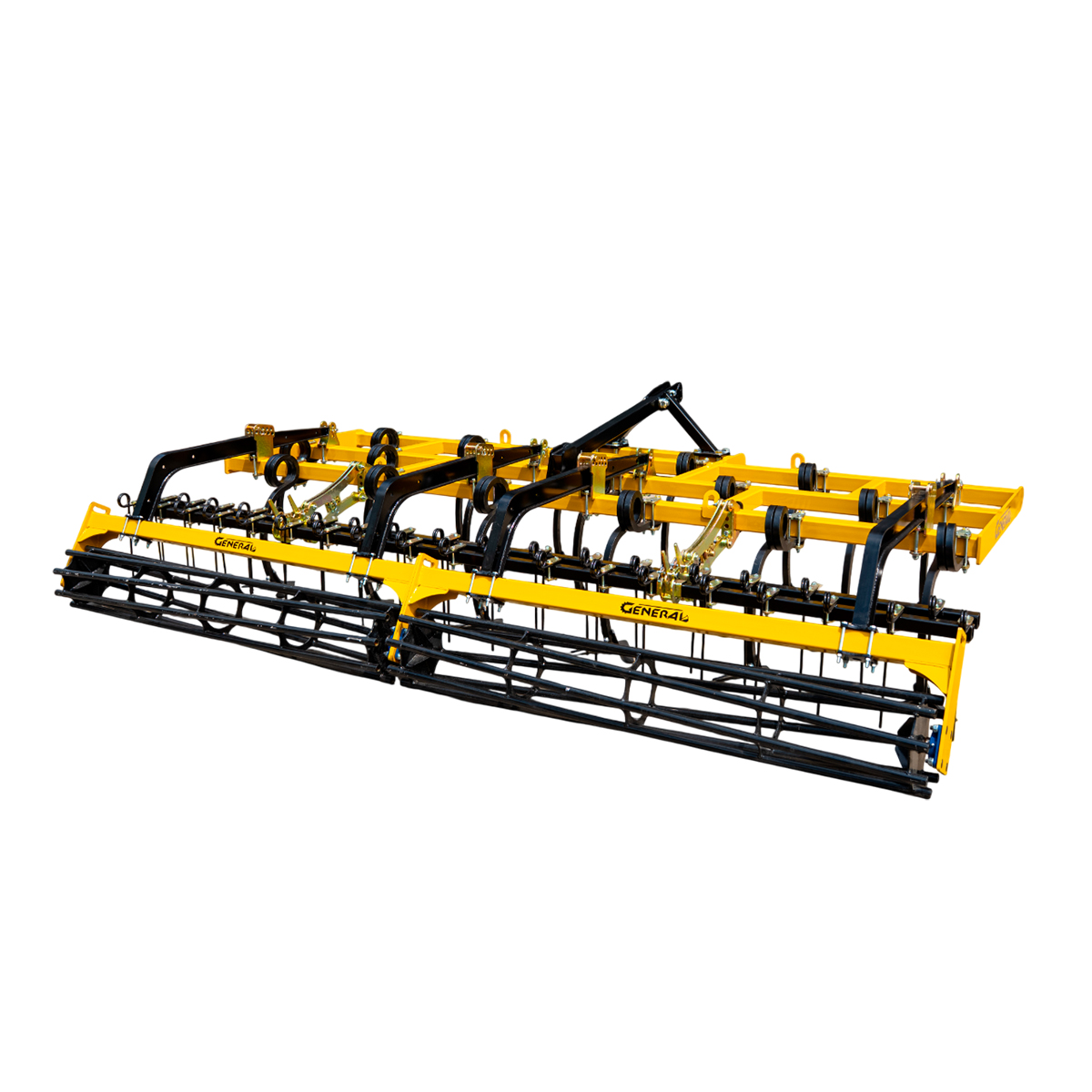

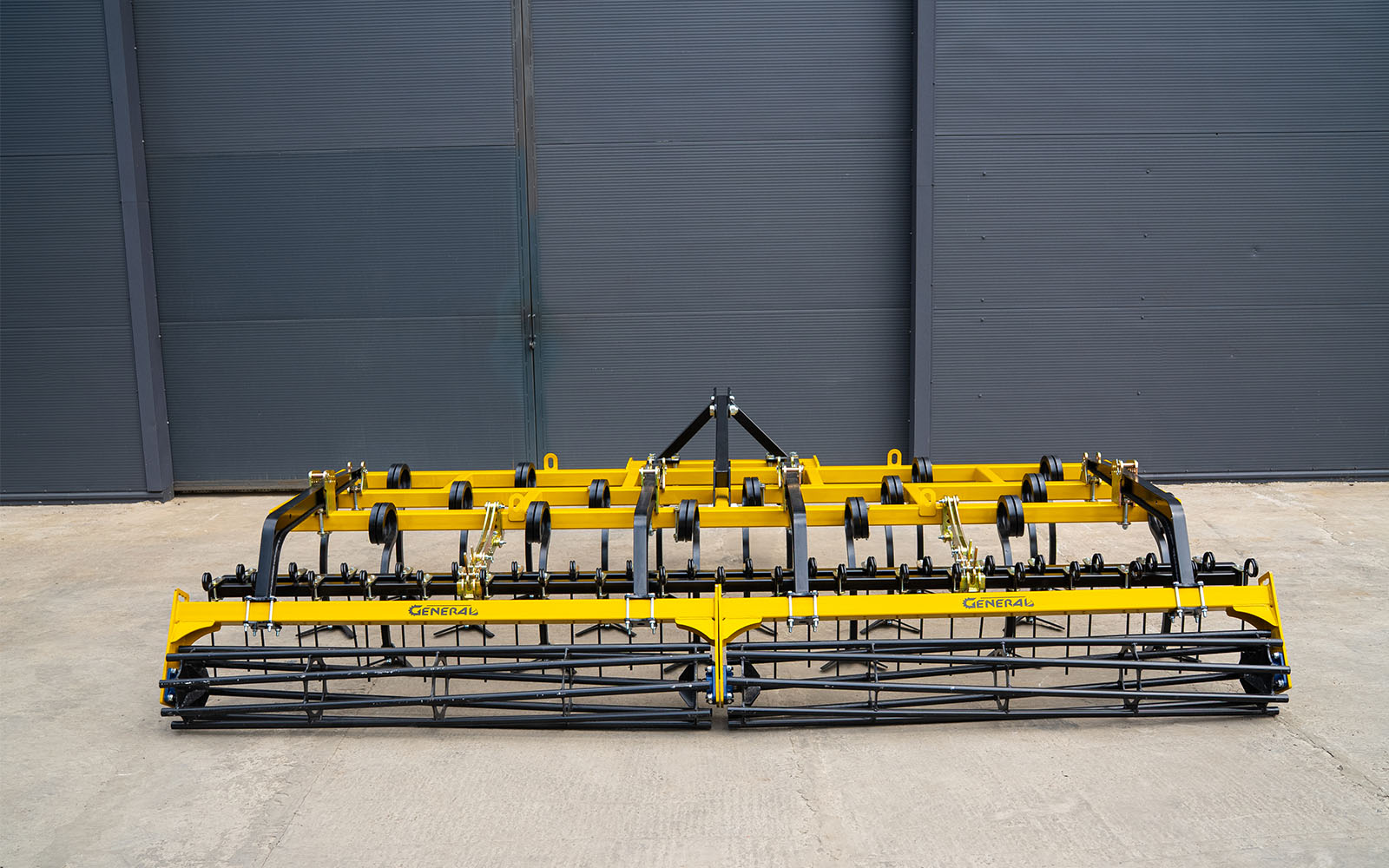

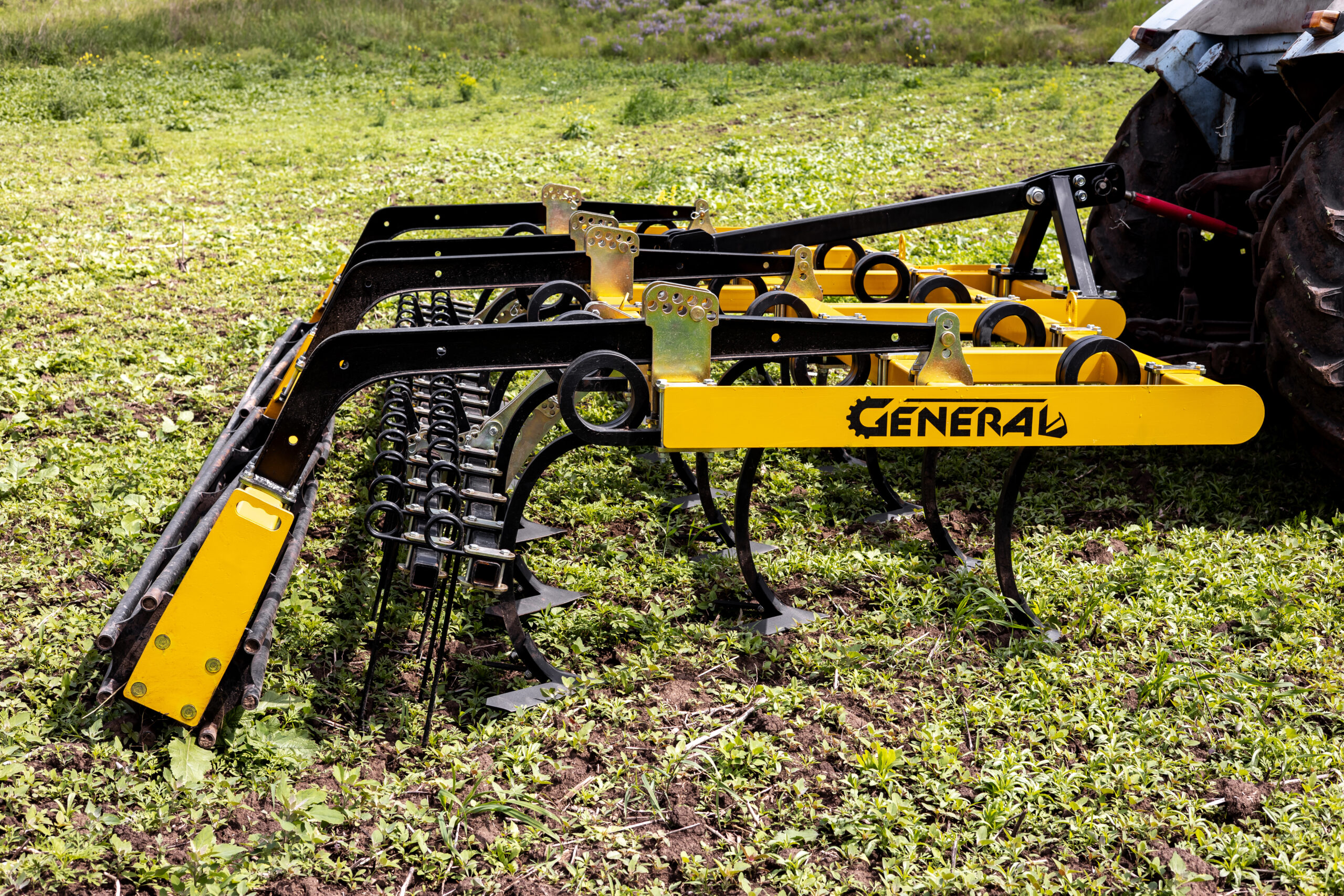

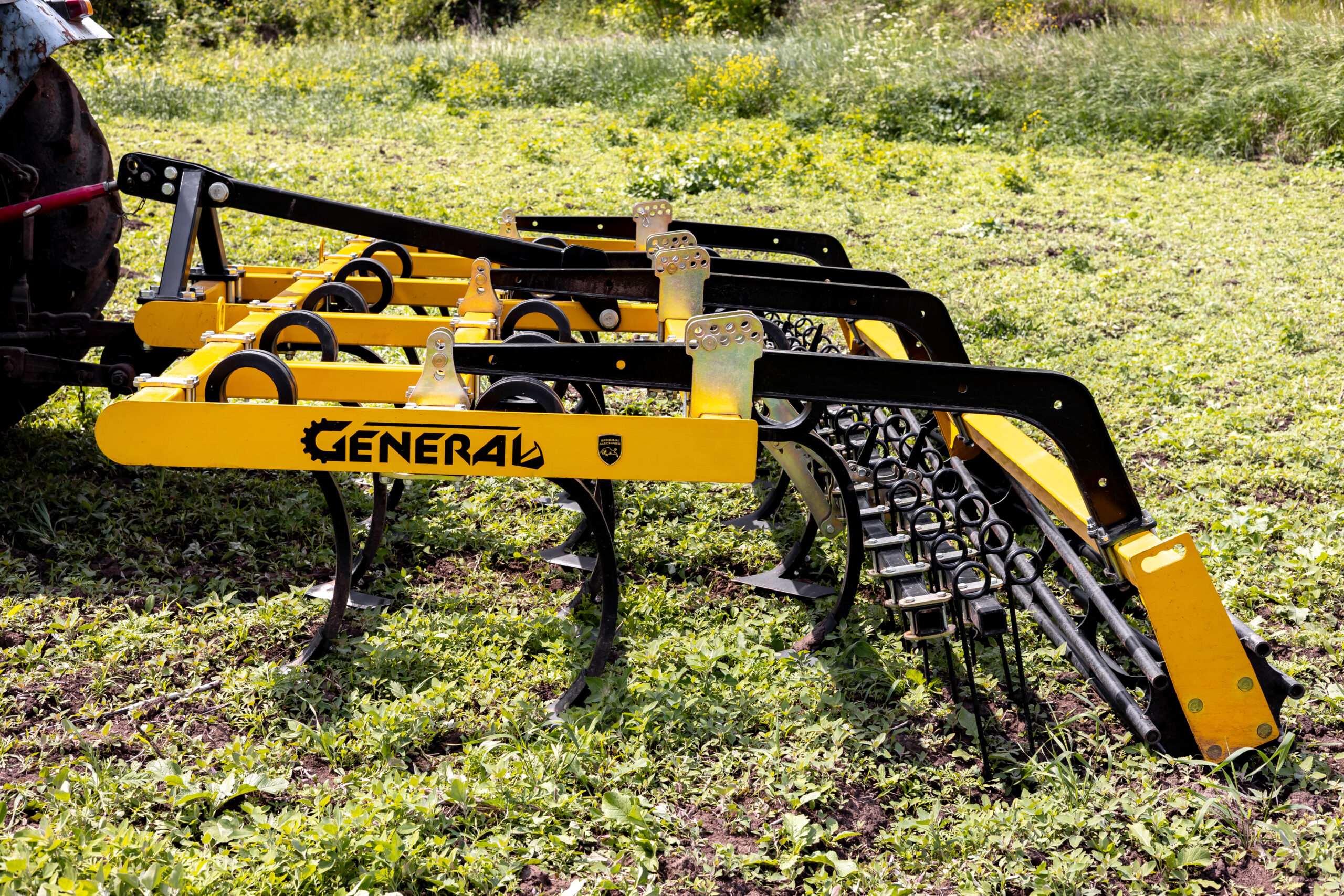

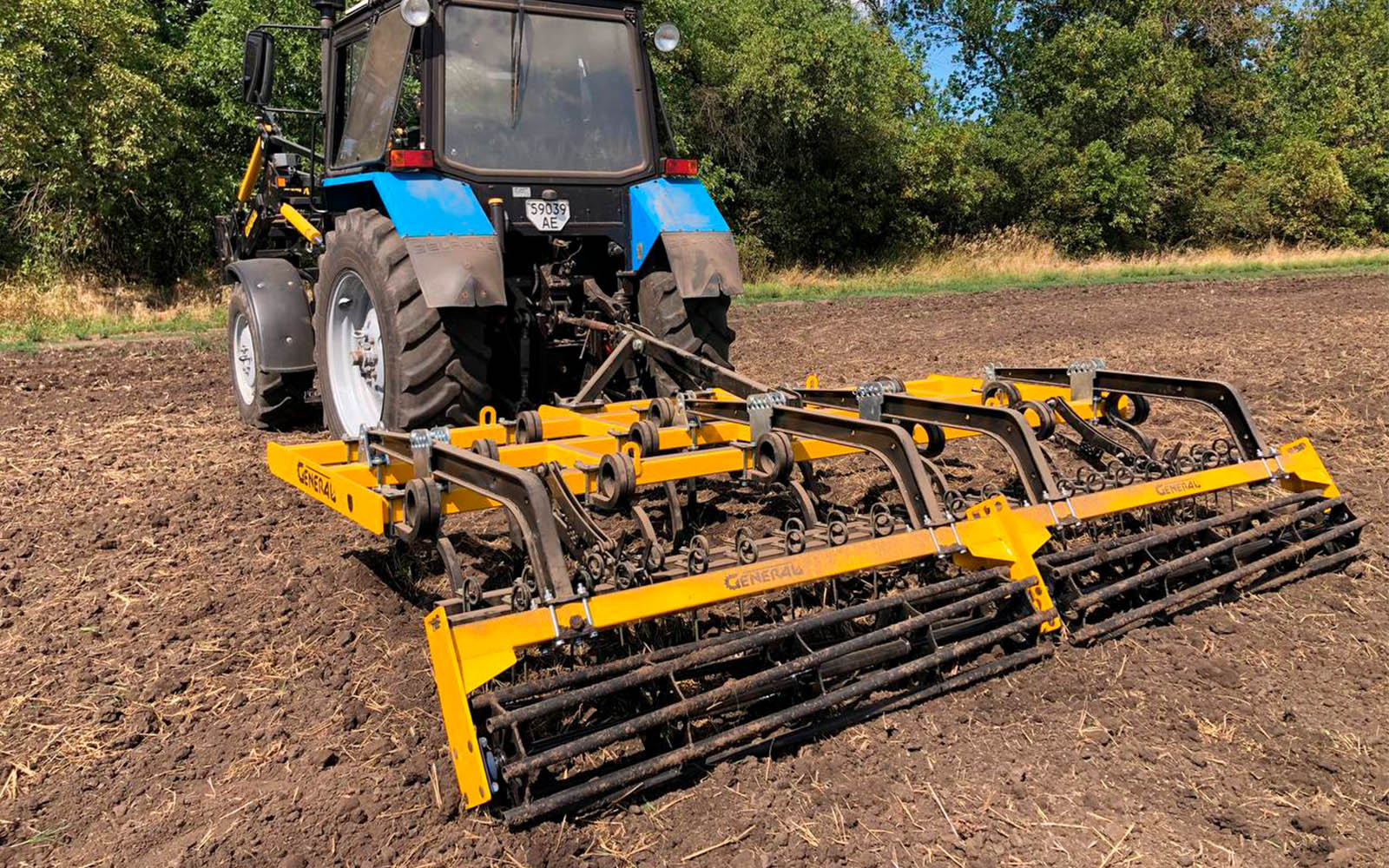

Hinged 3-row general cultivator KNS 4 (on two-row stand)
The hanging cultivator GENERAL KNS is universal and is used for pre-sowing cultivation and continuous steam processing. This cultivator provides complete soil preparation for sowing in just one pass across the field!
GENERAL KNS combines the simultaneous performance of 4 operations:
- cleaning steam from weeds with trimming and combing their roots
- loosening the soil without turning over the layer and combing plant residues
- breaking up lumps of earth and leveling the soil with a rake with spring teeth
- compaction and formation of the ideal structure of the sole and the surface layer of the soil with rolling rollers to prevent moisture evaporation.
- Working bodies on this model are evenly arranged in a checkerboard pattern in three rows. This arrangement of the racks provides an impeccable fluffing effect and
- mixing the soil without getting clogged with weeds and plant remains!
The range of applications of GENERAL KNS:
- Pre-sowing cultivation and preparation of the seed bed
- Continuous treatment and cleaning of vapors from weeds
- Plowing alignment
- Technical characteristics

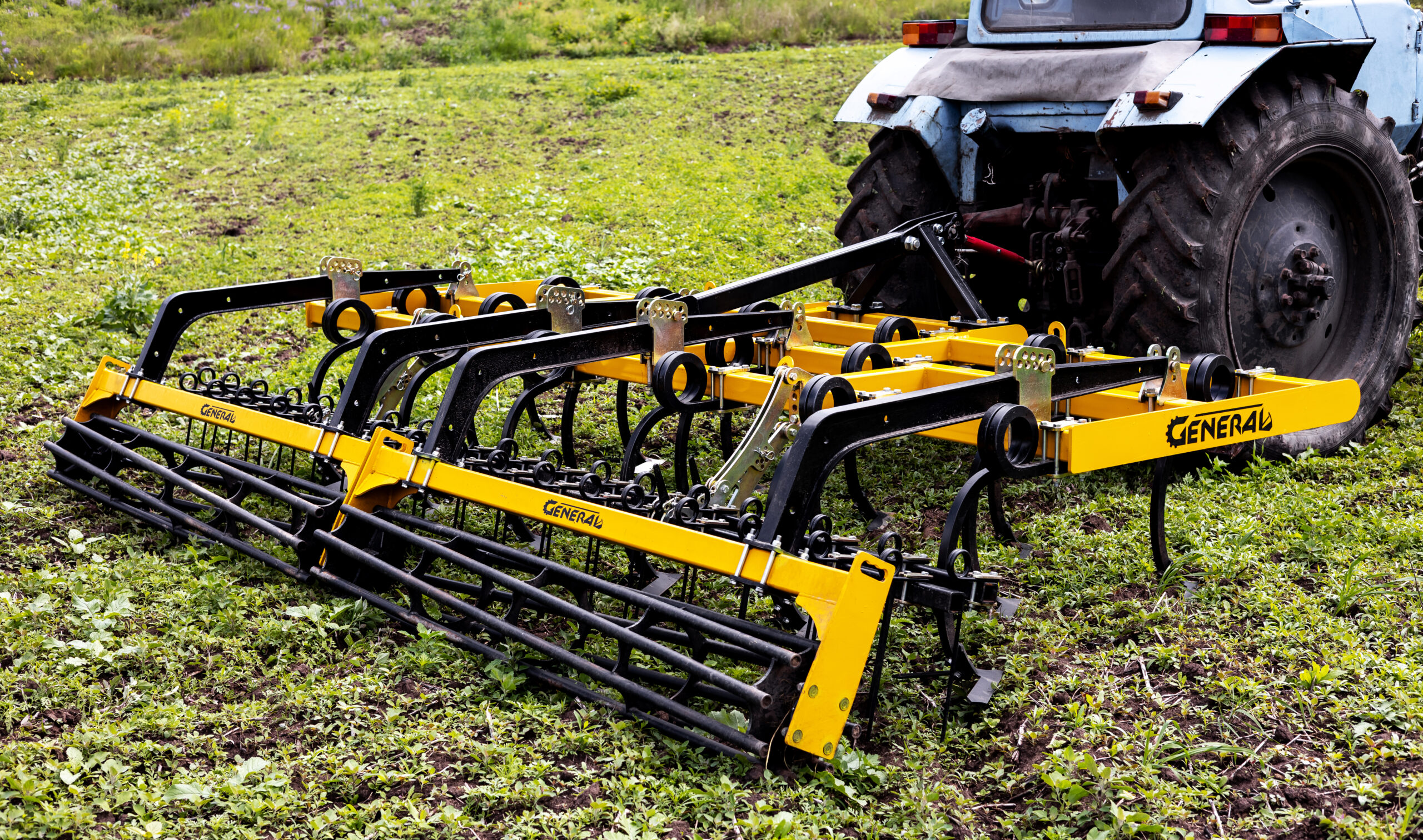

- Method of aggregation: hinged, quick-detachable euro beam
- Gripping width: 4 m
- Number of rows: 3
- Depth of decoration: 3-15 cm
- Tractor power: from 60 hp

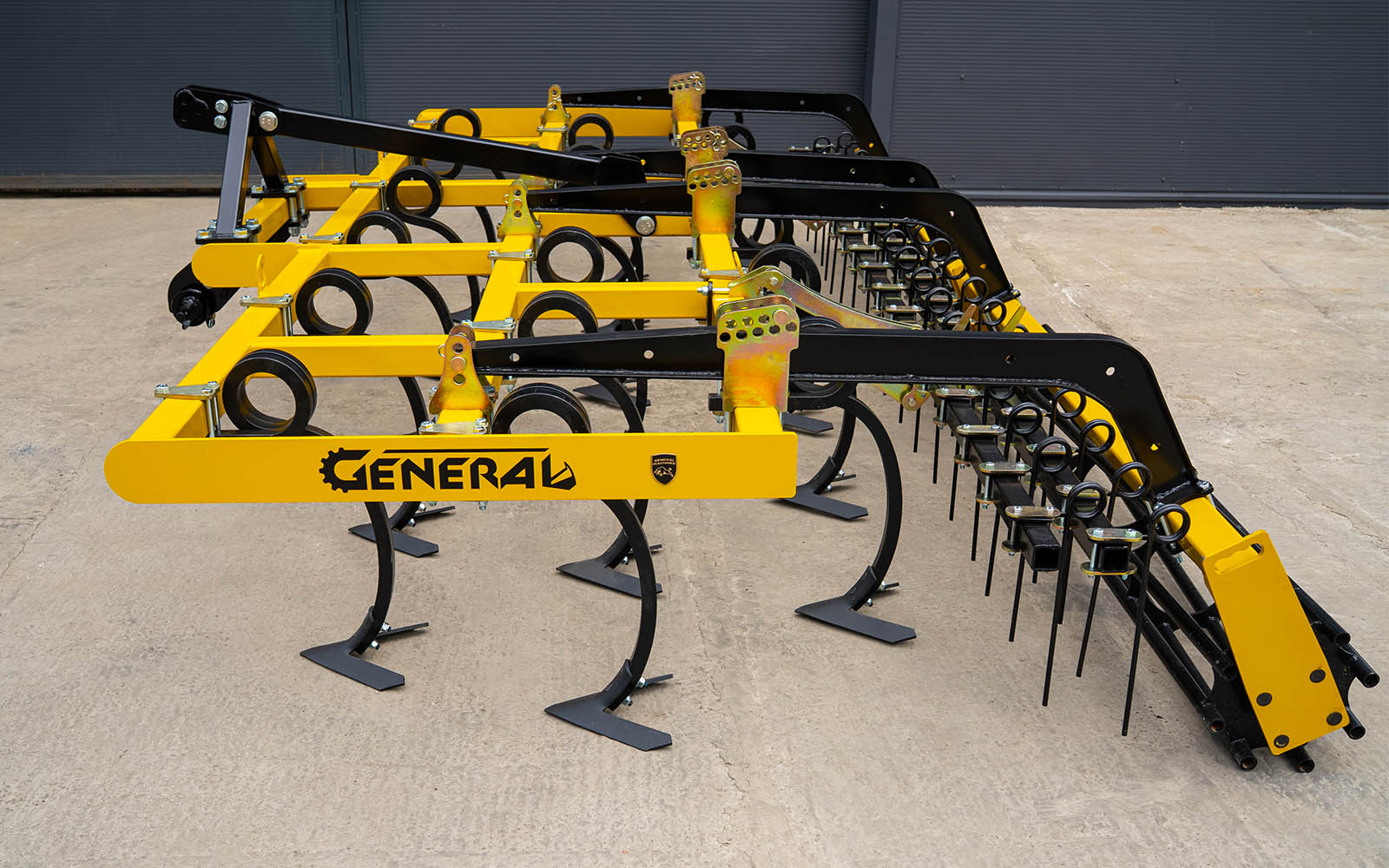

- Type of working body: S-shaped spring worker
- Step placement of working bodies: uniform, in checkerboard order, with a step of 220mm (660mm in one row!)
- Thickness of the profile tube of the frame: 5mm.
- Rake: yard

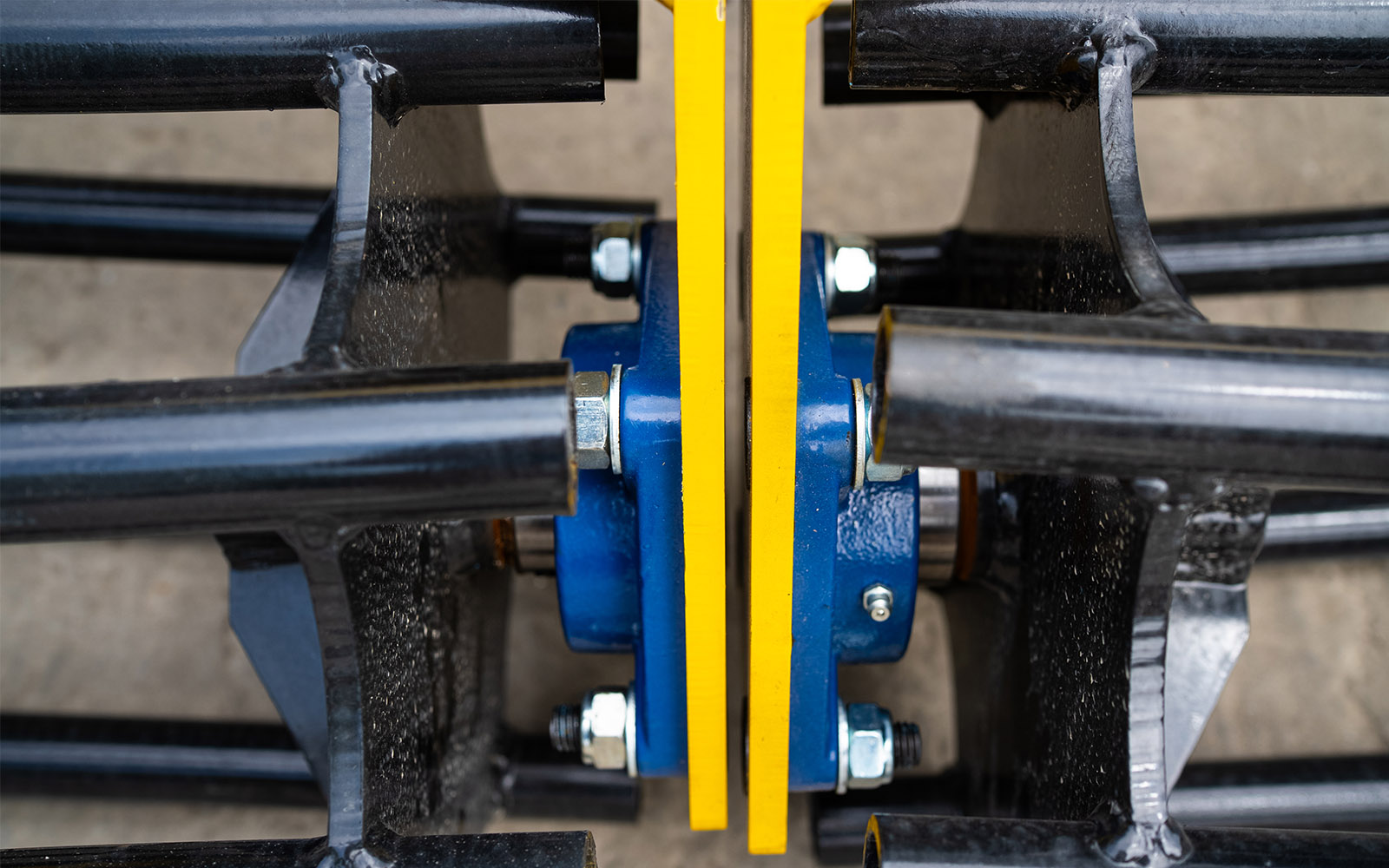

- Ring rink: double, with a diameter of 320 mm, one of 4 types (pipe straight, pipe spiral, from the strip straight, from the strip spiral)
All elements of the cultivator undergo mandatory processing, namely: cleaning, grinding. Before painting, primer and drying are carried out in the painting chamber! At the end, all parts are covered with enamel and dried in a drying chamber to acquire the necessary hardness of the paint.

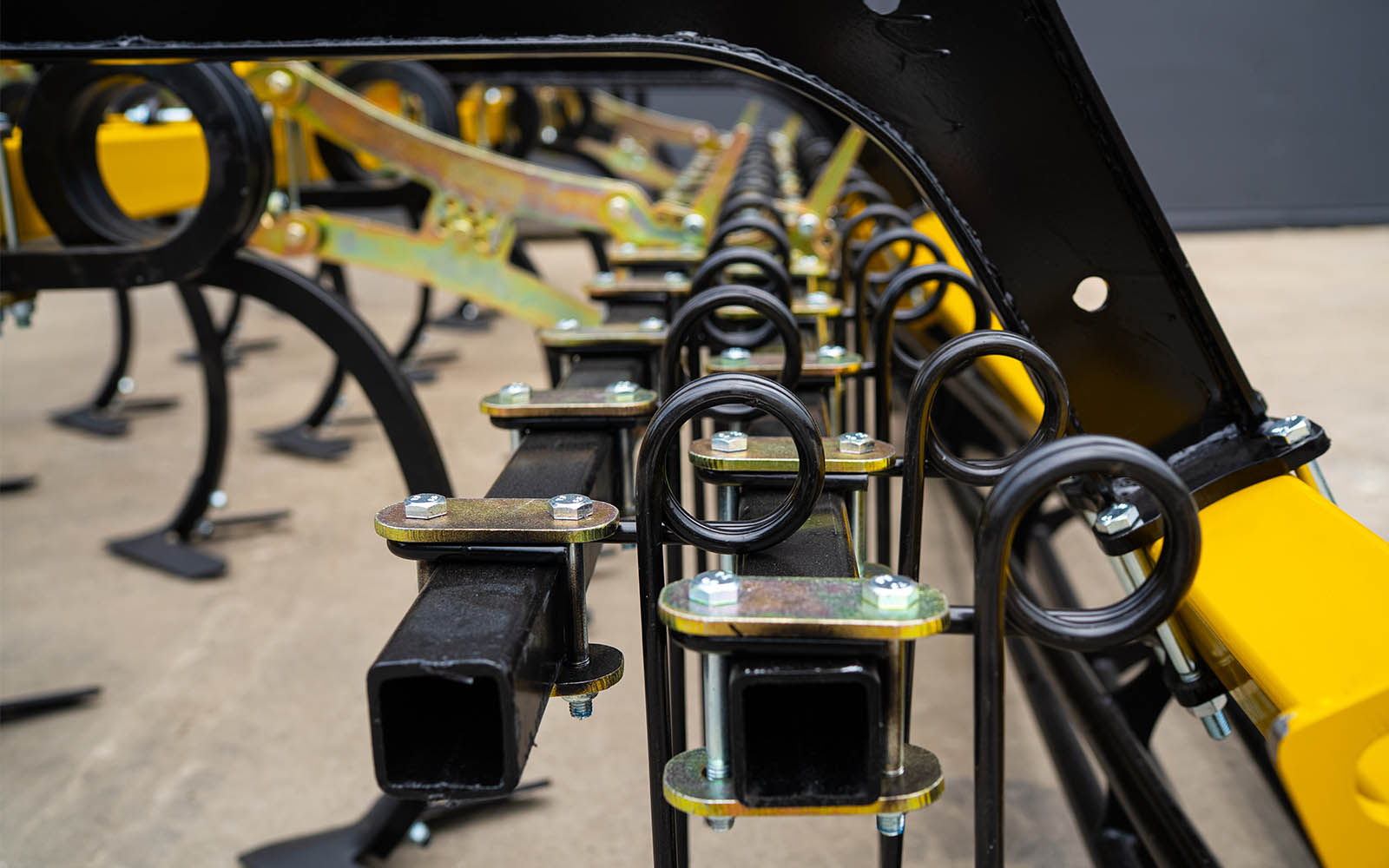

Advantages of a two-turn rack:
– There is no need for any adjustments, all organs are initially in one plane;
– the two-turn rack is not prone to plastic deformations (it springs back and returns to its place);
– during operation, the paw carries out constant cyclic oscillations in the longitudinal direction, which reduces the sticking of the soil (the so-called vibration effect);
– a spring stand protects the paw from damage on problematic soils with stones, roots, etc.;
– Very simply arranged, no hinged joints, etc.
– We actually use three bolt fasteners, which differ from the original in strength and reliability.
