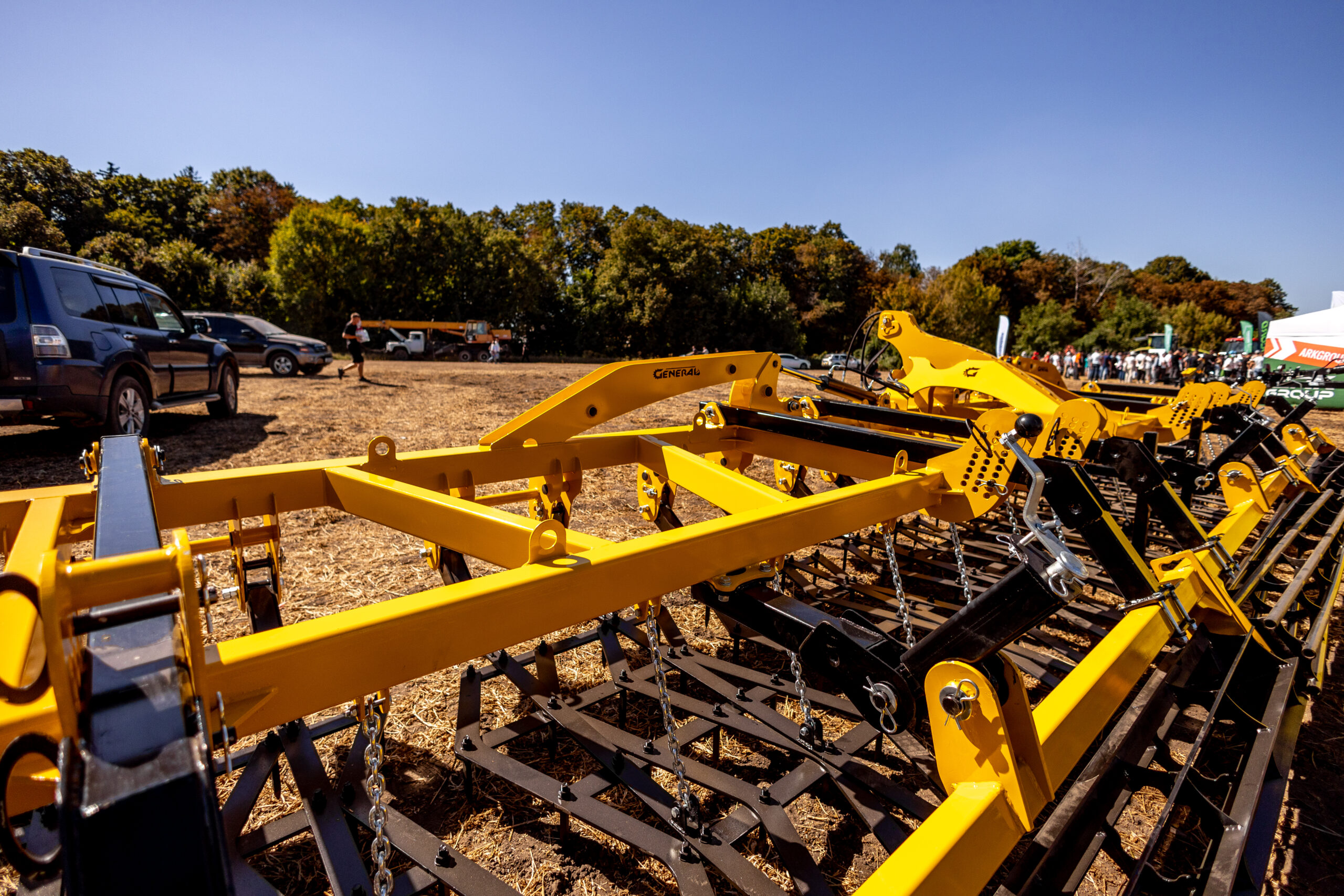

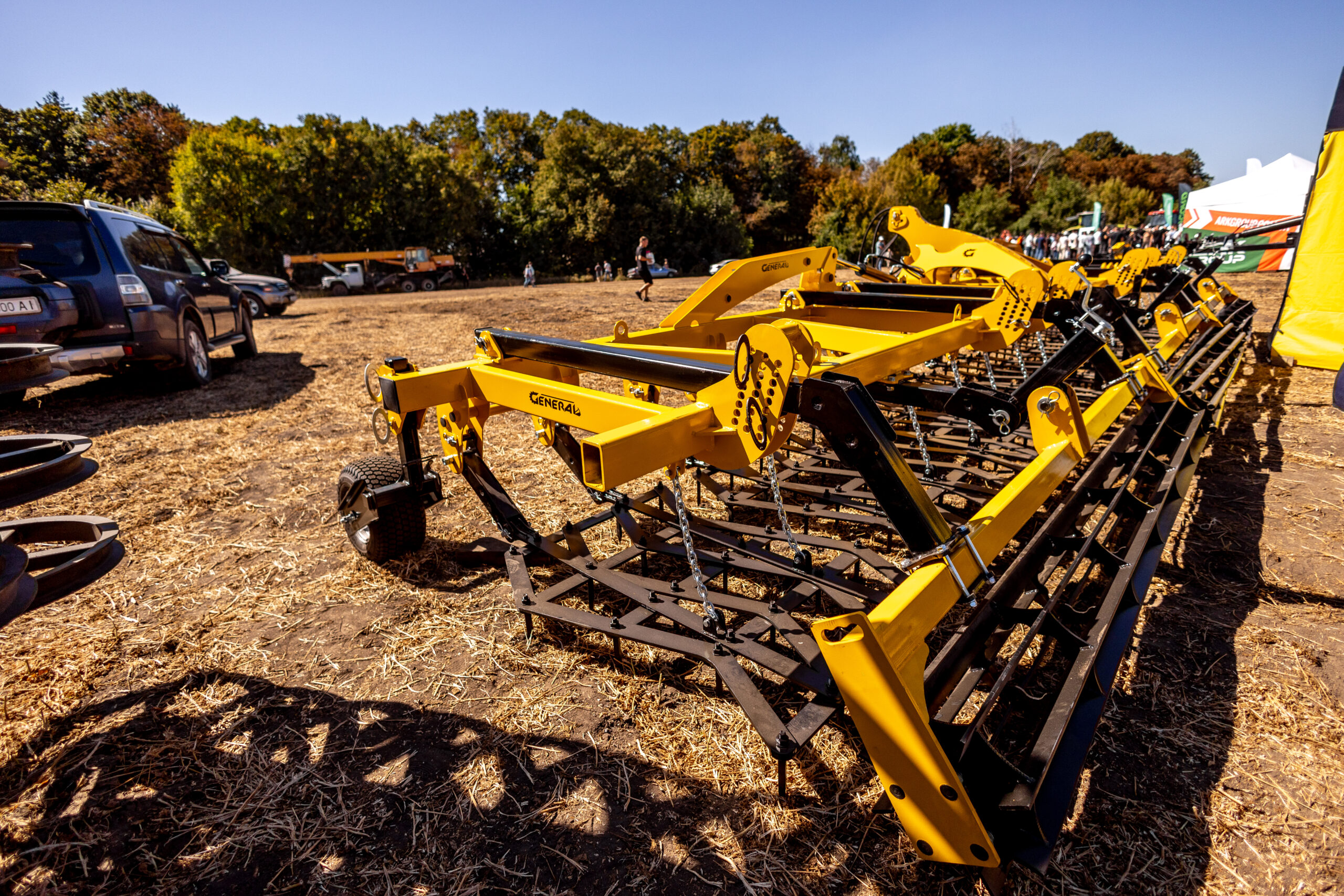

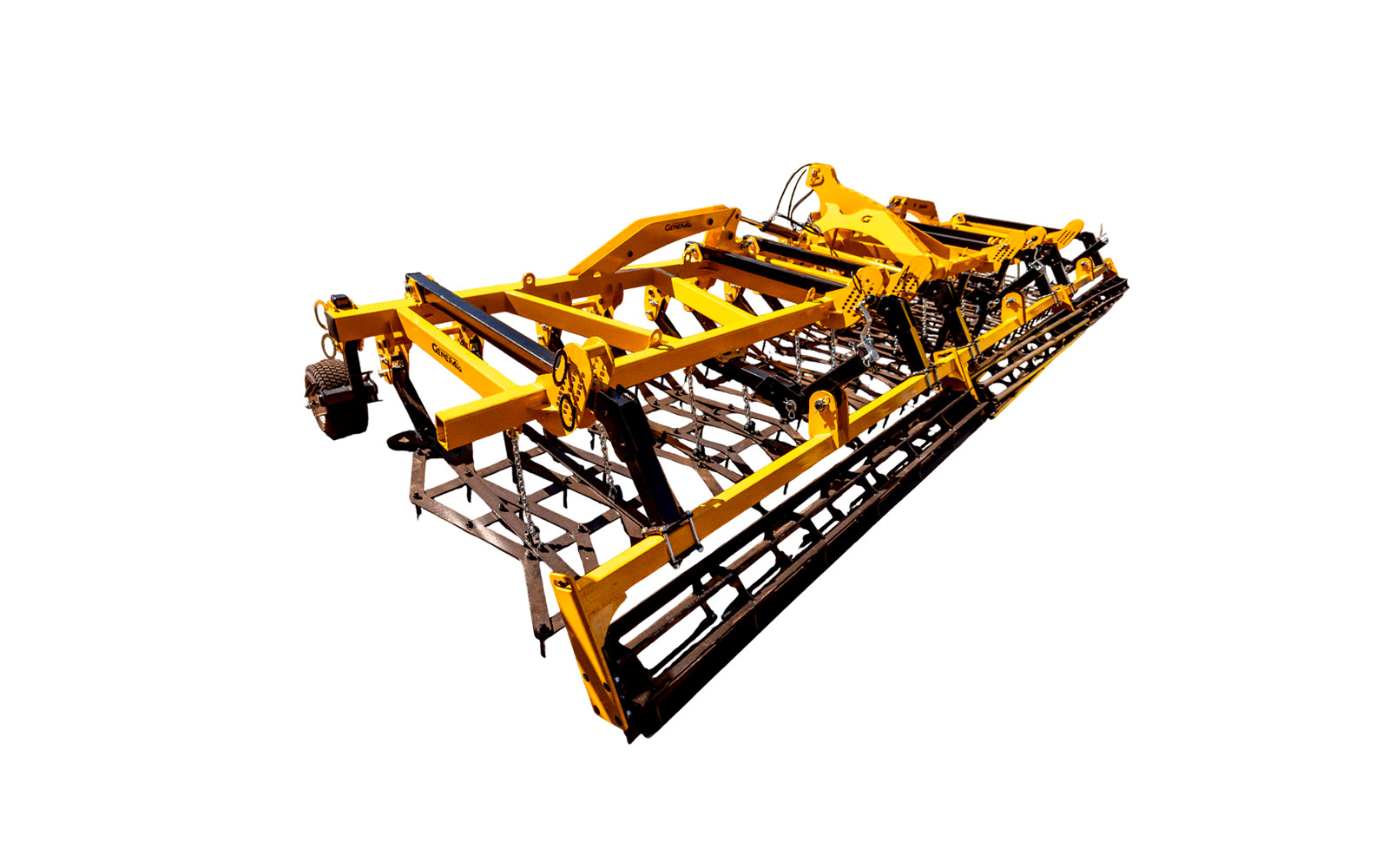

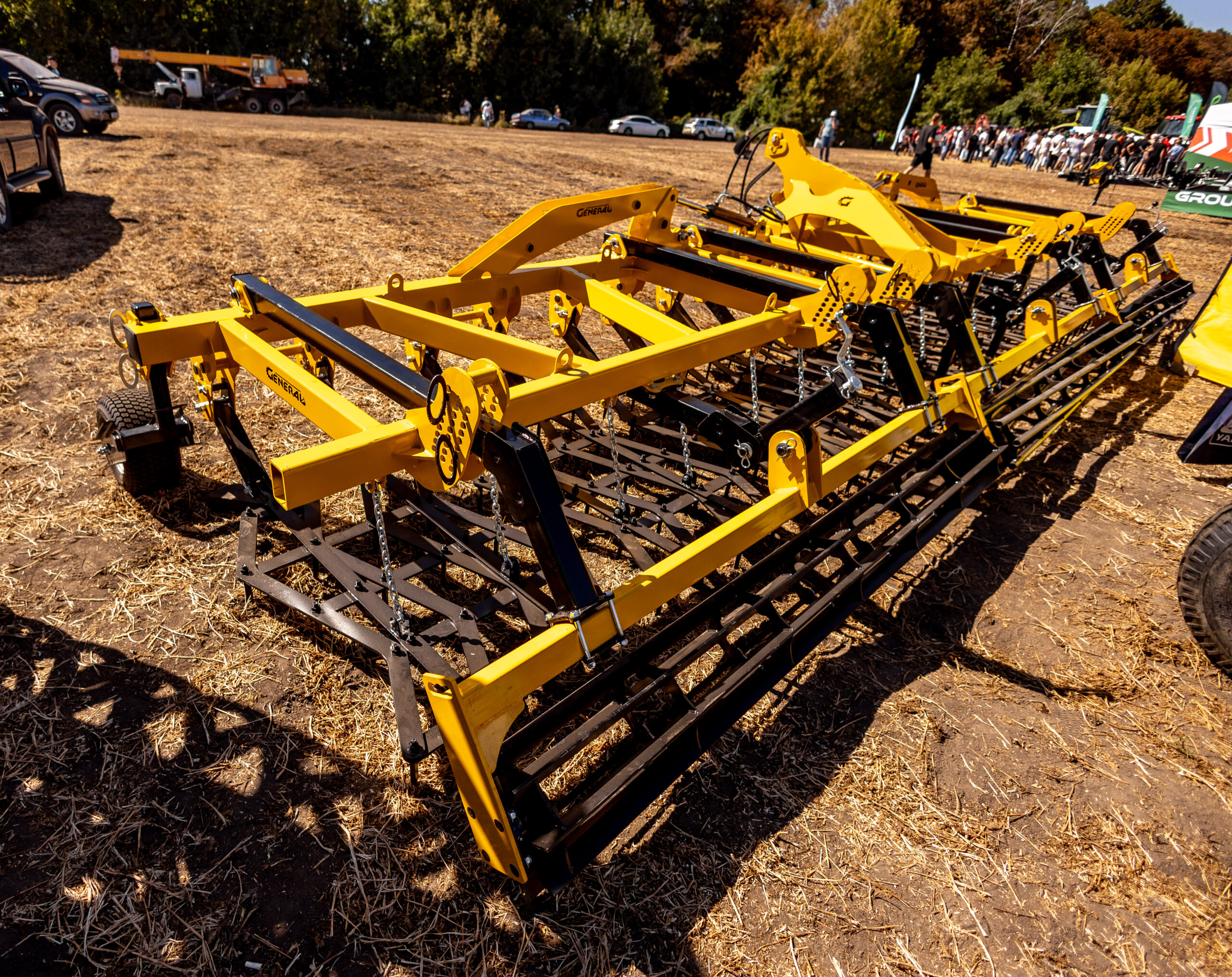

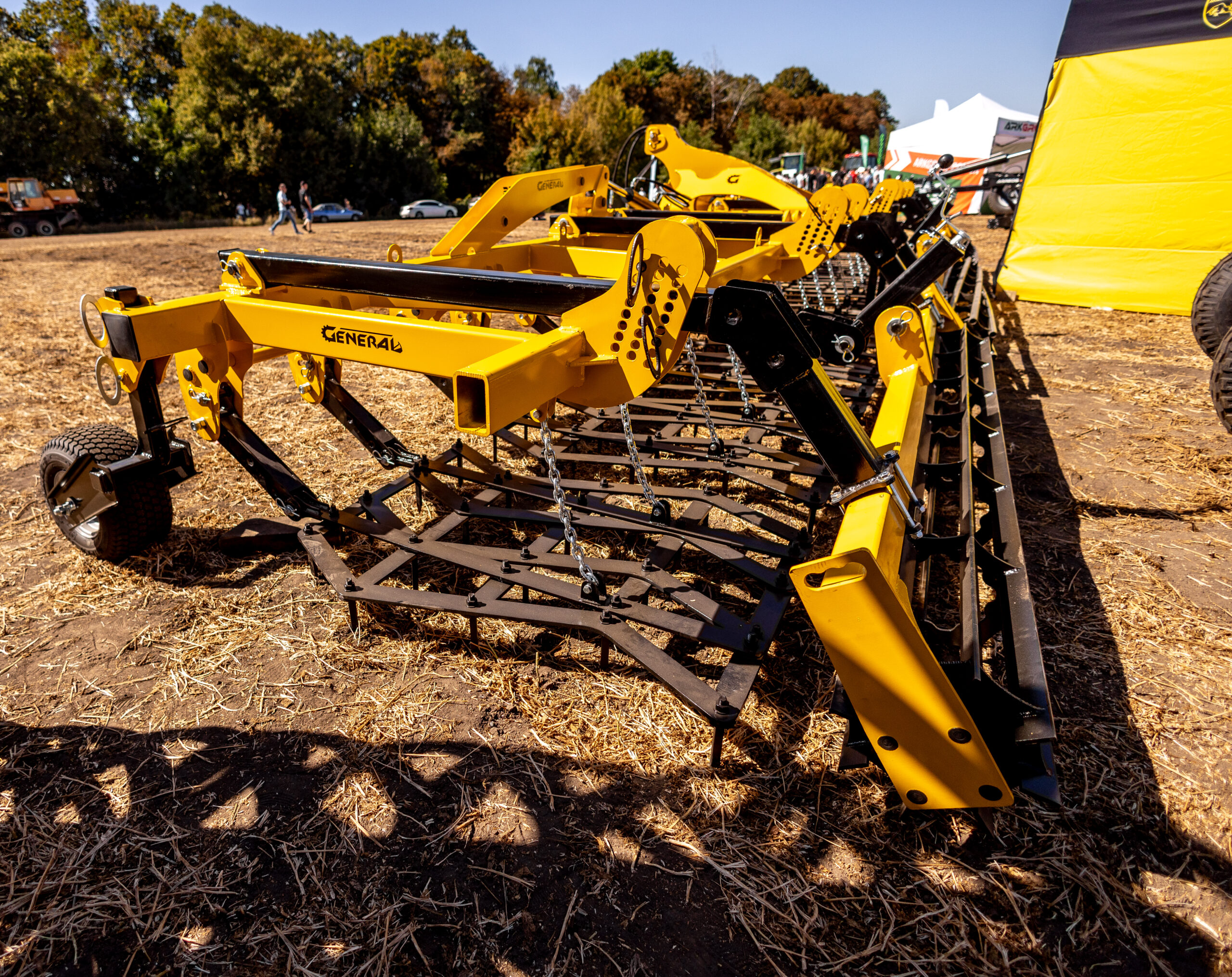

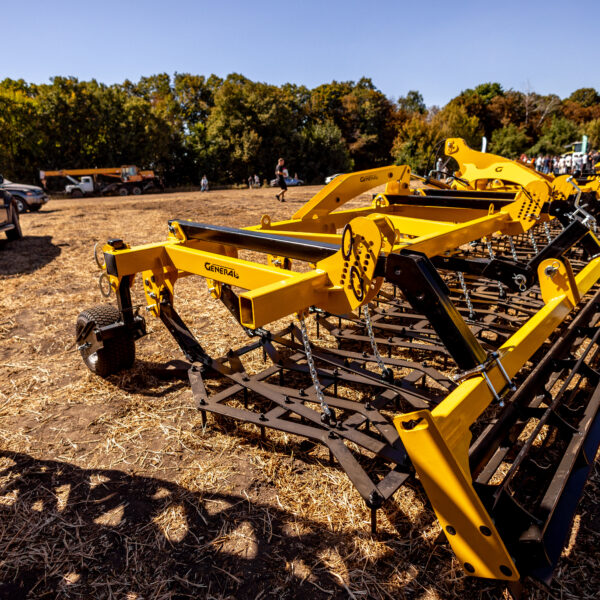

Harrow General 6m with FLOATING sections

Spring harrow General 6m with FLOATING sections
Description:
• number of teeth 192 pcs.
• working width of 6 meters
• transport width of the unit is 3 meters
• unit weight 900.
• number of support wheels 2
• the ability to adjust the wheels in a row.
• high clearance of the frame, which allows harrowing and weeding even at the late stages of crop development.
• Increased vibration due to spring teeth and firmly attached to the pipe
• Centralized adjustment of the position of the teeth on each section
• Strong and durable frame made of profile pipe 100x100x5
• Effective work due to the small actual step of the teeth reaches 30 mm. The number of teeth is 48 per 1.5 meters
• The basic condition for effective weed control is the minimum possible pitch of the teeth.
• The maximum range of adjustment of the pressure of the teeth ensures careful harrowing, blind harrowing and effective destruction of the soil crust
• Teeth with a diameter of 7 mm and a length of 630 mm
• These series universal tines with a diameter of 7 mm and a length of 630 mm are optimally suited for medium to heavy soils. This length of teeth ensures perfect adaptation to soil irregularities. These teeth are mainly used in the processing of grain crops.
• Self-cleaning occurs due to harrowing vibration without jams
• Separation of soil from weed roots, rapid drying prevents re-sprouting
• Heavy and strong frame design eliminates rocking even at high operating speed. Even on hard soils, the harrow can exert sufficient pressure on the tines without swinging. In addition, the frame easily withstands high loads and a large number of seasons of operation.
• The position of the sections and the high frame guarantee a high passage. Due to this harrowing of tall crops can be done longer without damaging them.
• The stiffness of the spring tines can be adjusted using the central adjustment lever for each section of the harrow, 4 positions are available ranging from Drag to Grab. Hydraulic adjustment is provided as an option.
• Support wheels provide depth control and prevent the spring tines from sinking too far into light soils. Thanks to this, the harrow perfectly adapts to the unevenness of the soil.
• at the request of the client, it is possible to install Signal signs with holders and LED lighting
• Mounted on the front and rear of the harrow.
possible harrow options for the client: 3m, 6m, 9m, 12m,
if desired, the harrow can be adapted with additional support wheels at the back for ideal maintenance of the height of the harrow during work.
it is also possible to add, as an additional option, a hopper for applying fertilizer according to the type of pneumatic seeder for easy application of intermediate crops or small seeds
