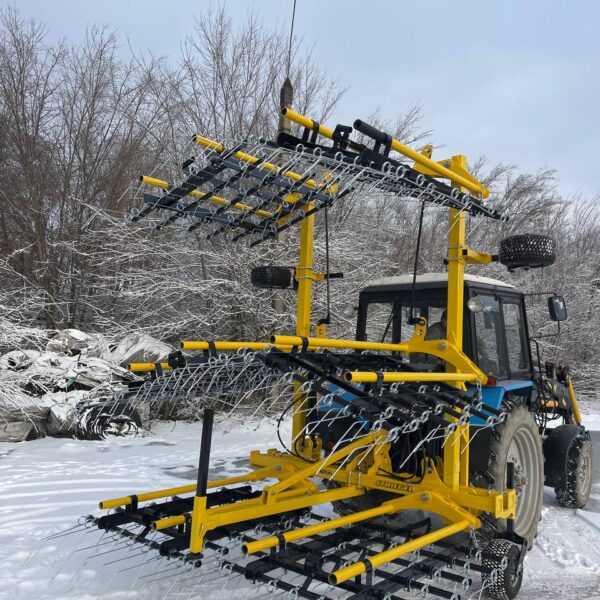

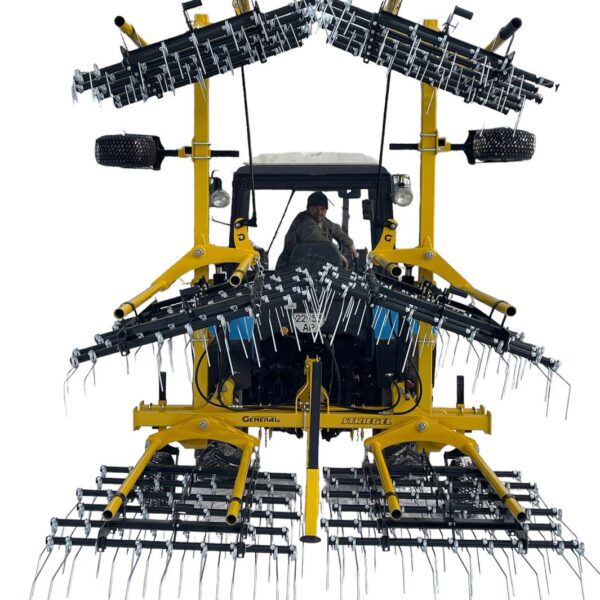

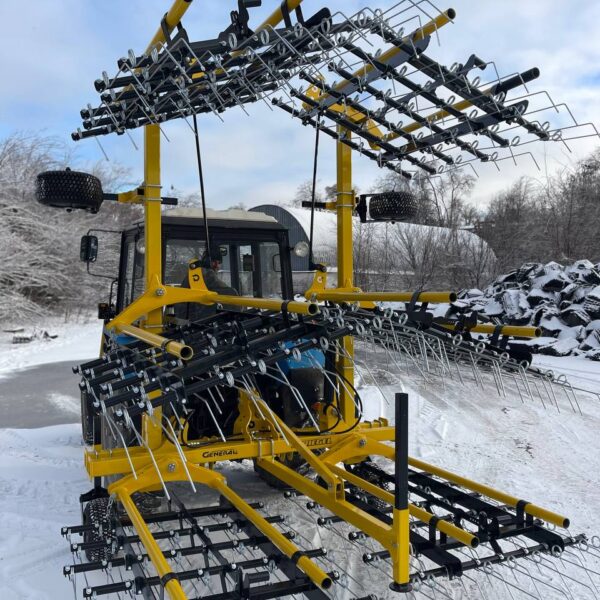

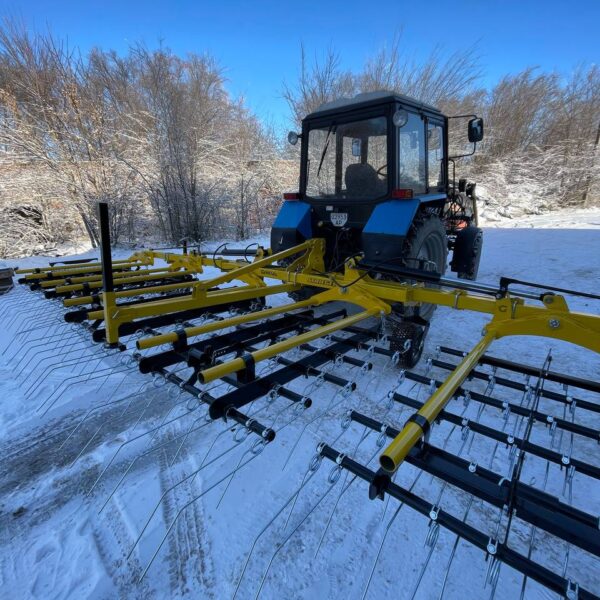

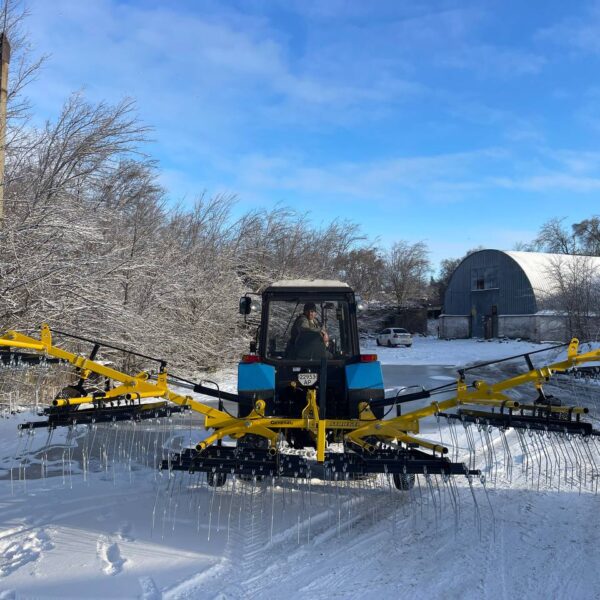

General spring harrow with FLOATING sections
Description:
- number of teeth 288 pcs.
- working width of capture 9 meters
- transport width of the unit is 3 meters
- transport height of the unit is 3.70
- unit weight 1200.
- number of support wheels 4
- possibility of adjusting the wheels in a row.
- high clearance of the frame, which allows harrowing and weeding even at the late stages of crop development.
- Increased vibration due to spring teeth and firmly attached to the pipe
- Centralized adjustment of the position of the teeth on each section
- Strong and durable frame made of profile pipe 100x100x5
- Efficient work due to the small actual step of the teeth reaches 30 mm. The number of teeth is 48 per 1.5 meters
- The main condition for effective weed control is the minimum possible pitch of the teeth.
- The maximum range of adjustment of the pressure of the teeth ensures careful harrowing, blind harrowing and effective destruction of the soil crust
- Teeth with a diameter of 7 mm and a length of 630 mm
- These series universal tines with a diameter of 7 mm and a length of 630 mm are optimally suited for medium and heavy soils. This length of teeth ensures perfect adaptation to soil irregularities. These teeth are mainly used in the processing of grain crops.
- Self-cleaning occurs due to harrowing vibration without congestion
- Separation of soil from weed roots, rapid drying prevents re-sprouting
- Heavy and strong frame design eliminates rocking even at high operating speed. Even on hard soils, the harrow can exert sufficient pressure on the tines without swinging. In addition, the frame easily withstands high loads and a large number of seasons of operation.
- The position of the sections and the high frame guarantee a high passage. Due to this harrowing of tall crops can be done longer without damaging them.
- Adjustment of the stiffness of the spring tines can be done with the help of the central adjustment lever for each section of the harrow, 4 positions are available ranging from Dragging to Grabbing. Hydraulic adjustment is provided as an option.

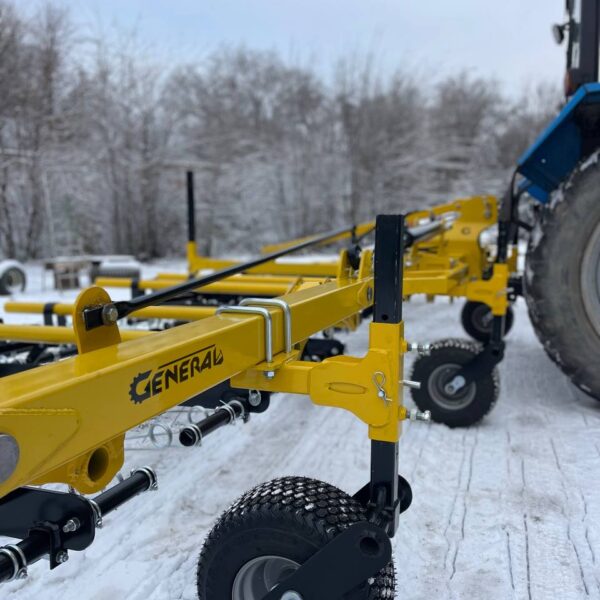

- The support wheels provide depth control and prevent the spring tines from sinking too far into light soils. Thanks to this, the harrow perfectly adapts to soil irregularities.
- at the request of the client, it is possible to install Signal signs with holders and LED lighting
- Installed on the front and rear of the harrow.
3 m, 6 m, 9 m, 12 m harrow options are possible for the client
if desired, the harrow can be adapted with additional support wheels at the back for ideal maintenance of the height of the harrow during work.
it is also possible to add, as an additional option, a hopper for applying fertilizer according to the type of pneumatic seeder for easy application of intermediate crops or small seeds
