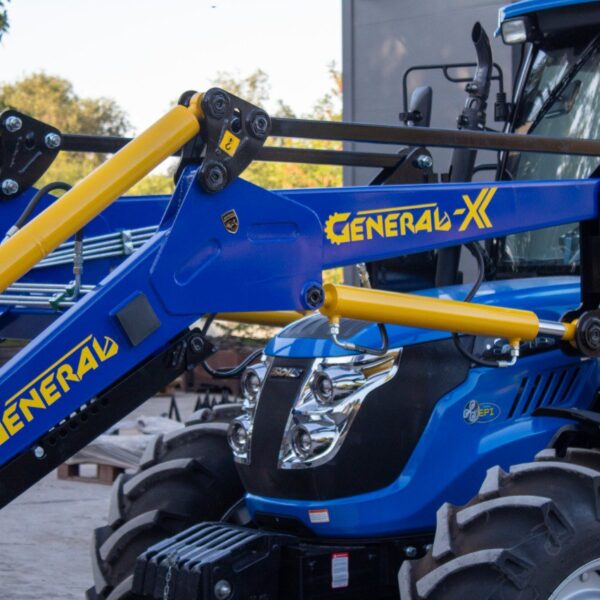

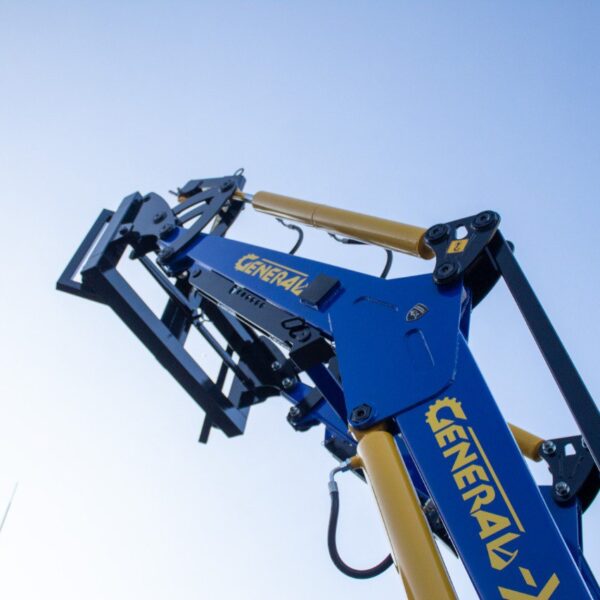

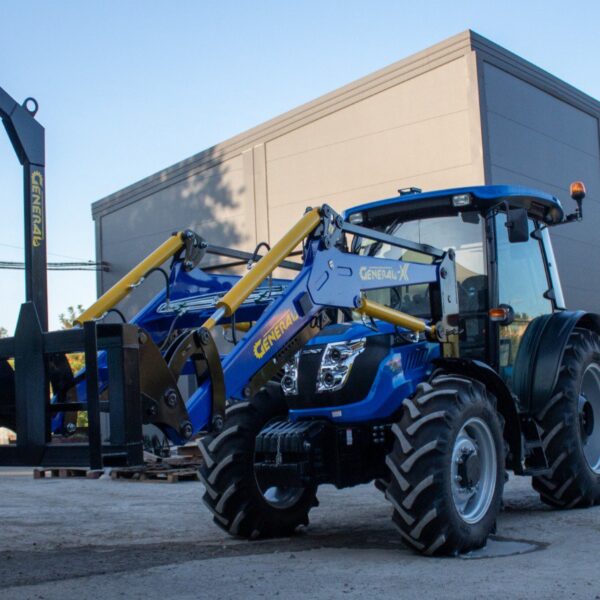

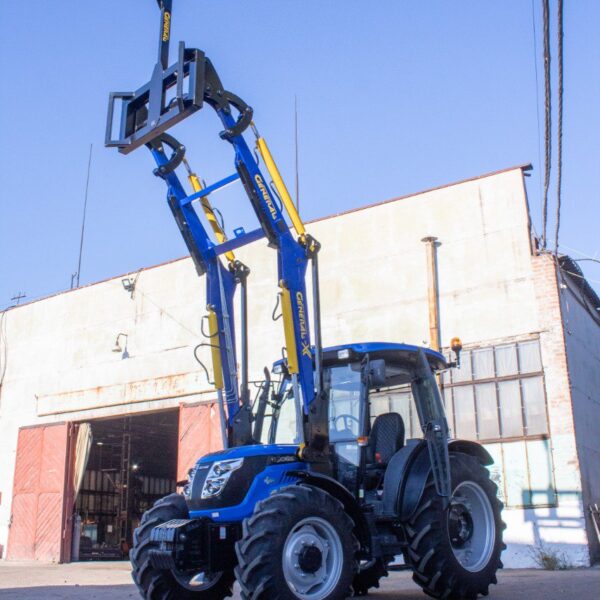

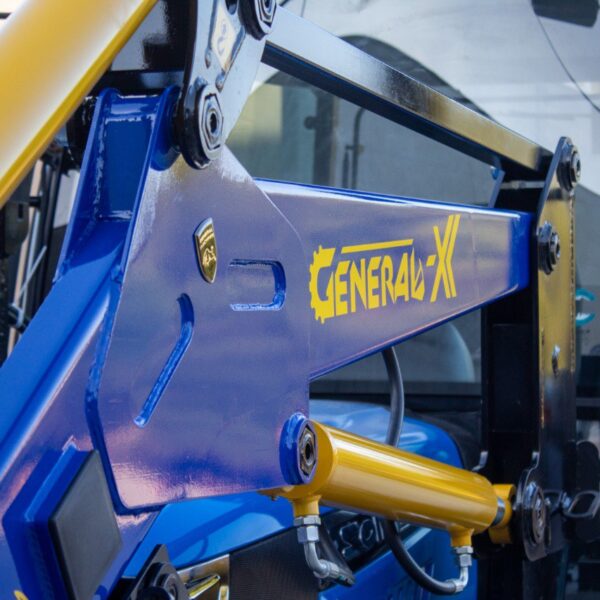

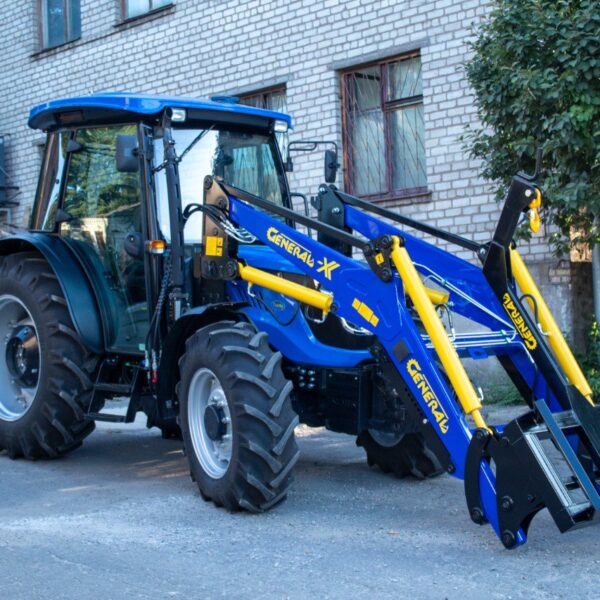

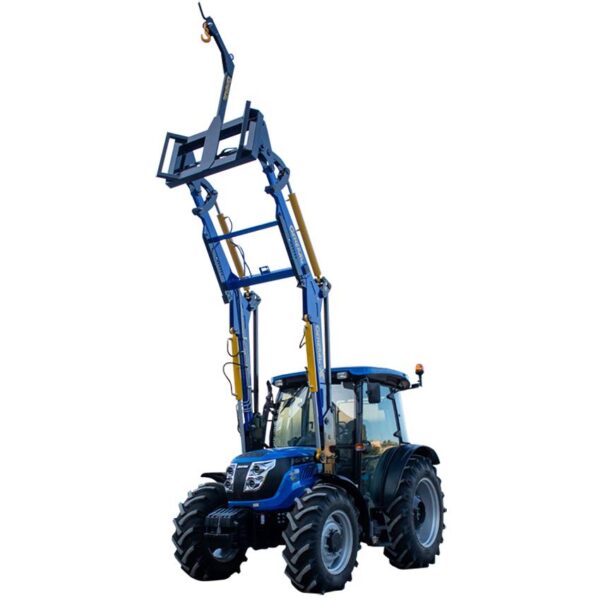

KUHN General X quick-detachable front loader on Solis 105 tractor

The KUHN GENERAL X quick-release front loader for the Solis 105  tractor is a versatile assistant for any farm that will turn your tractor into a complete machine for loading and transporting all types of cargo, leveling and clearing. Our KUHN front loader has been tested for durability and reliability, has international quality certification, is guaranteed to withstand loads of up to 2000 kg and allows you to load Eurotrucks of any height!

Its installation on a tractor and connection to its hydraulic system takes a matter of minutes!

Main advantages:
Unique design and copying system of the loader, which allows you to load trailers up to 5 m in height with bulk cargo without waking up!
Level racks for mounting the loader on the tractor, subframe rods to the rear axle and a tightening screw on the boom, which shifts the entire load to the center of the tractor and creates additional rigidity of the entire structure, which completely eliminates the possibility of damage to your tractor and ensures maximum reliability in operation!
Made of first-class steel with a wall thickness of up to 30 mm.
Reliable and high-quality imported external hydraulic system
Powerful hydraulic cylinders with 50 mm rod with SS bearings for stable operation on uneven surfaces and protection of the boom and hydraulic cylinders from breakage.
Interchangeable bushings and pins with press oils
Ability to change and install different types of buckets and equipment
Joystick for comfortable and easy operation of the loader (optional).

Specifications:
Method of aggregation: Mounted
Max. working height: 4.3/4.8 m (with bucket); 6 / 6.5 m (with big-bag hook)
Load capacity: up to 2000 kg
Copy system: Yes
Boom wall thickness: up to 12 mm
Wall thickness of the uprights and spar mounts: 30 mm.

Hydraulic system:

Hydraulic cylinders: for lifting: 50x80x630 mm bore; for the outboard: 40x80x320 mm
Service life: 10,000 complete strokes
Max. pressure: 20 mPa
Hansa-Flex high-pressure steel tubes (Germany)
High-pressure double-pallet hoses (Italy)
Replaceable fingers with press oils and bushings

Equipment:

Standard bucket ( Sizes : 1.6 / 1.8 / 2 / 2.2 / 2.4 м ,
Volume: 0.65 / 0.85 / 1 / 1.2 / 1.5 м3
Max. wall thickness: 8 mm
Knife: hardened steel 15 mm)
Stands and attachments to the spars
Subframe rods to the rear axle
Tightening screw
Connection kit for tractor hydraulic system
Joystick and connection kit (Optional)
