Universal (communal) double-sided blade GENERAL UNIVERSAL

Universal (communal) double-sided blade for tractor GENERAL UNIVERSAL

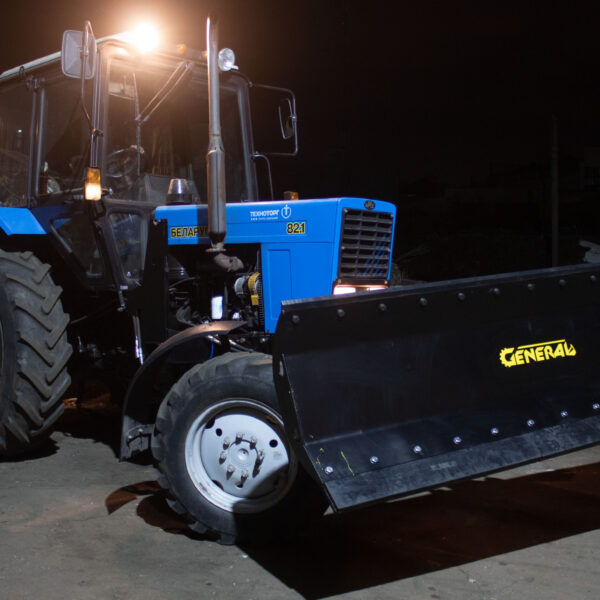

Mounted grader blade for tractor GENERAL UNIVERSAL is a universal equipment for your tractor that will help you in quick and high-quality cleaning of the territory from snow, ice and debris, profiling areas and slopes, leveling and moving the soil. Thanks to the unique design, the blade has two replaceable edges, one of which is equipped with a 15 mm hardened steel blade, and the other with 40 mm wear-resistant rubber! This allows us to use our plow for a variety of cleaning and landscaping tasks!

Mounting the blade on the tractor and connecting to the hydraulic system takes only a couple of minutes – and it is immediately ready to start working!

Key Benefits

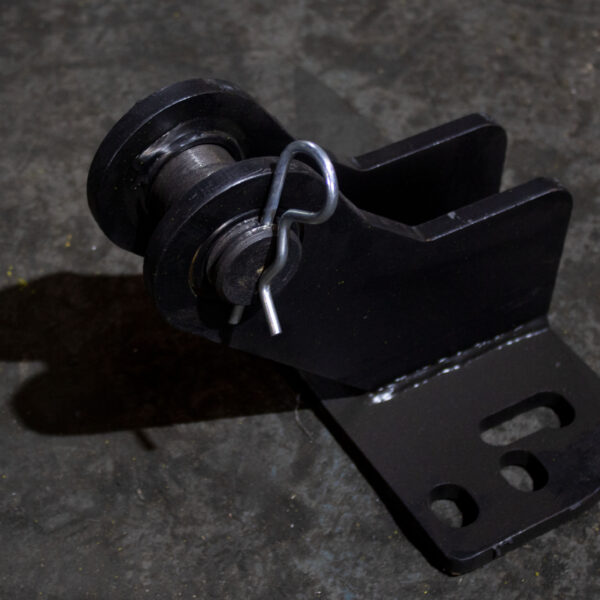

• Quick-detachable design of the blade and shovel with fixation on pins with a cotter pin

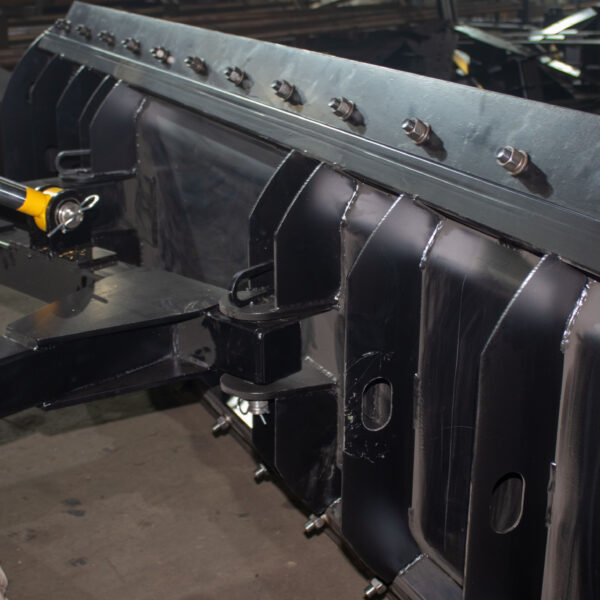

• Rigid and durable shovel made of 4 mm first-class steel and reinforced with stiffeners

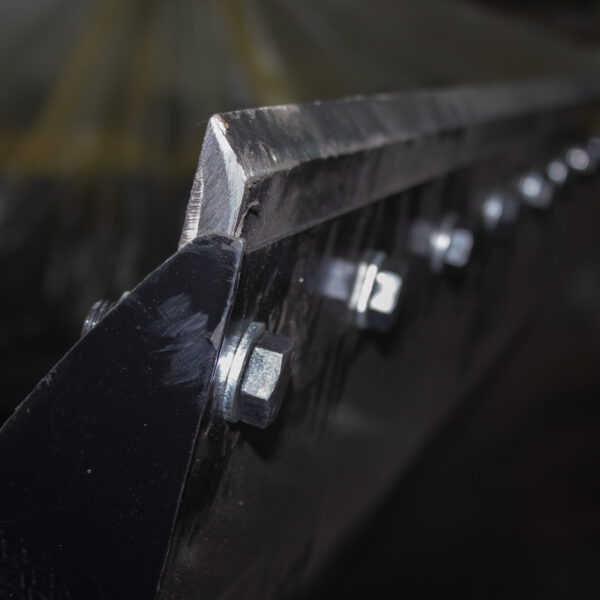

• Replaceable edges fixed with hardened bolts

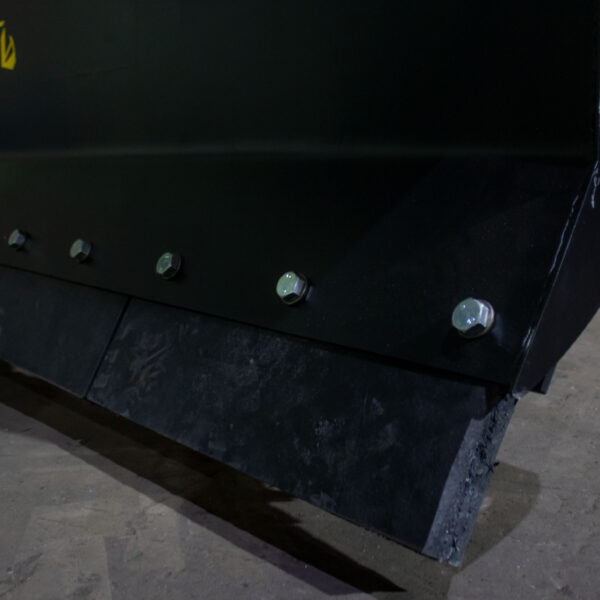

• 15mm hardened blade and 40mm reinforced wear rubber

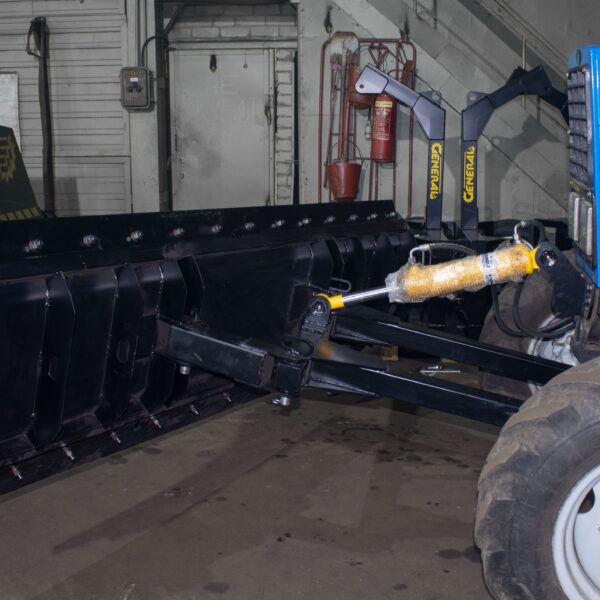

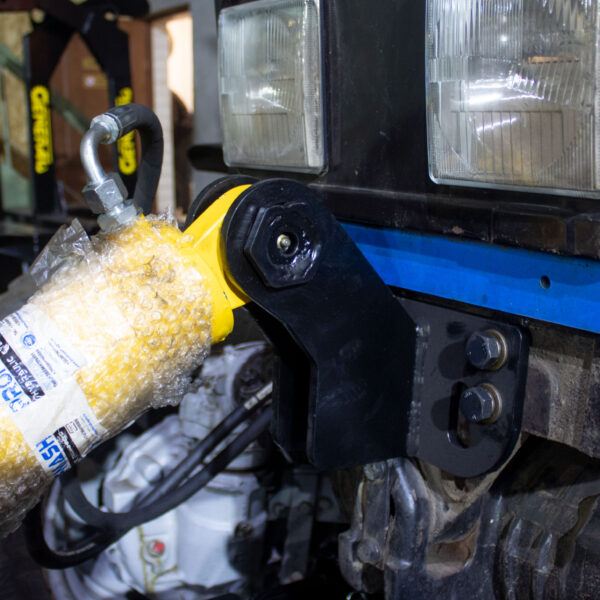

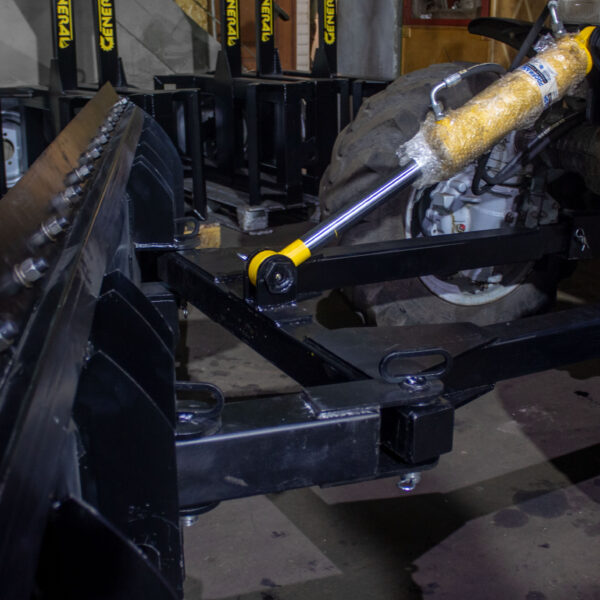

• Powerful hydraulic actuator with hydraulic cylinder with 40 mm rod for height adjustment
• Mechanical swivel adjustment
• Grease pins for long life and easy maintenance
• Primer and polymer paint for reliable protection against damage and corrosion

Specifications

• Aggregation method : Hinged
• Aggregated with tractors: All models: MTZ, YuMZ
• Shovel wall thickness: 4mm
• Shovel height: 80 cm
• Shovel width: 250 cm
• Knife : 15 mm hardened steel
• Rubber: 40 mm reinforced wear-resistant

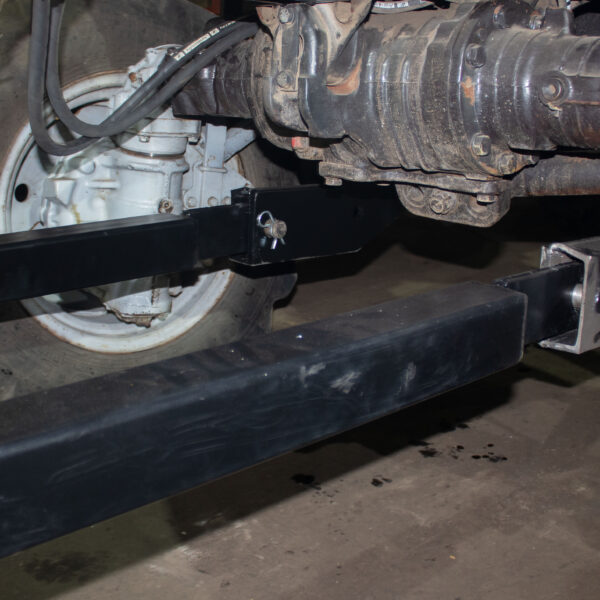

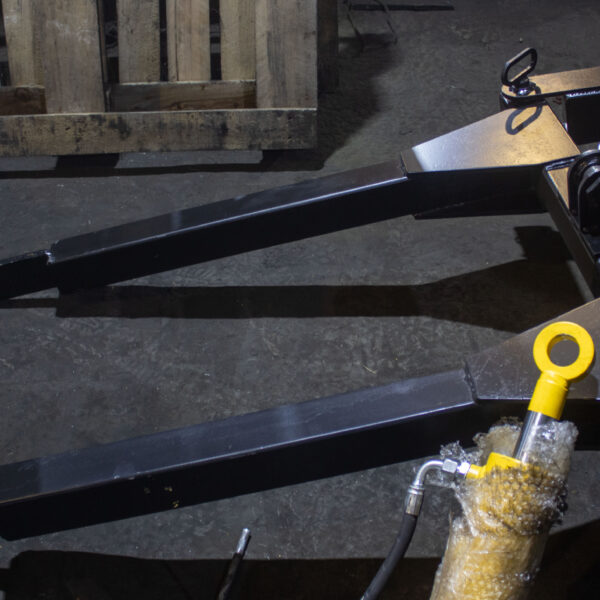

• Wall thickness of fastenings to side members: 14 mm
• Hydraulic drive:

– Hydraulic cylinder: on the rise: 40x80x320

• work life: 10,000 full strokes
• max.pressure:20MPa

– Double braided high pressure hoses

• Replaceable pins with grease fittings
• Pins 30 mm with cotter pin
