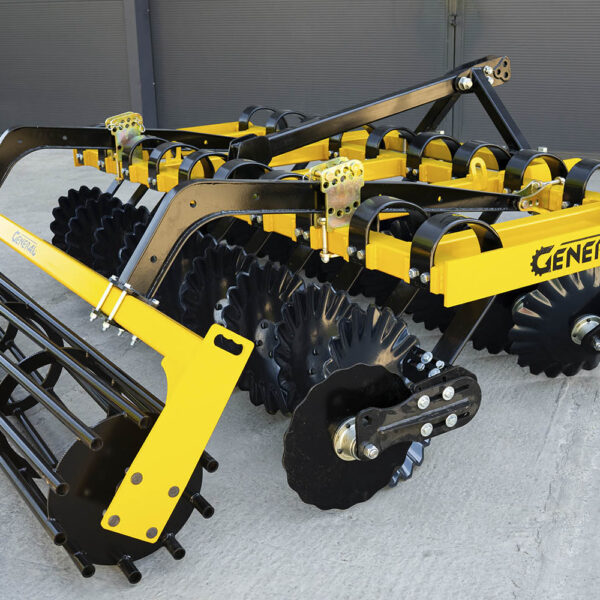

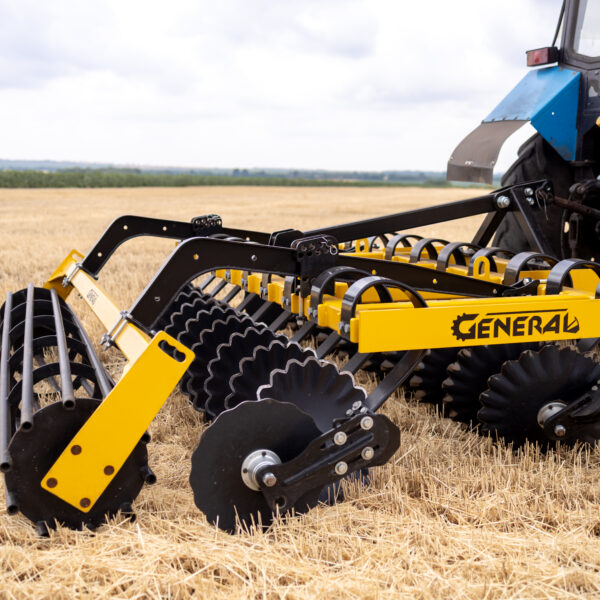

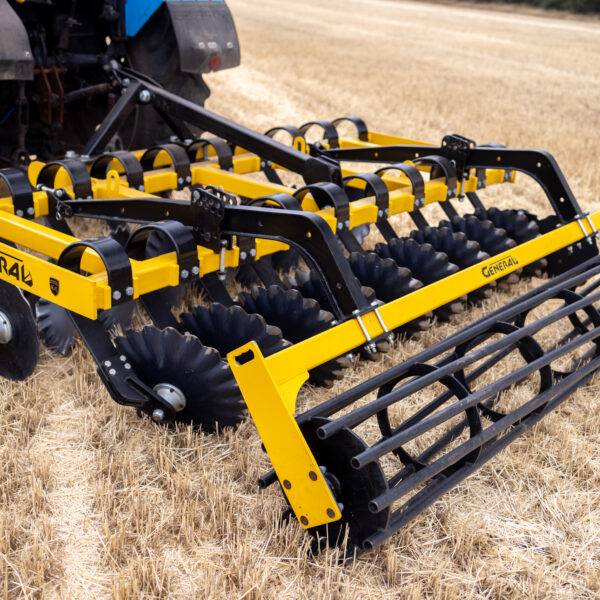

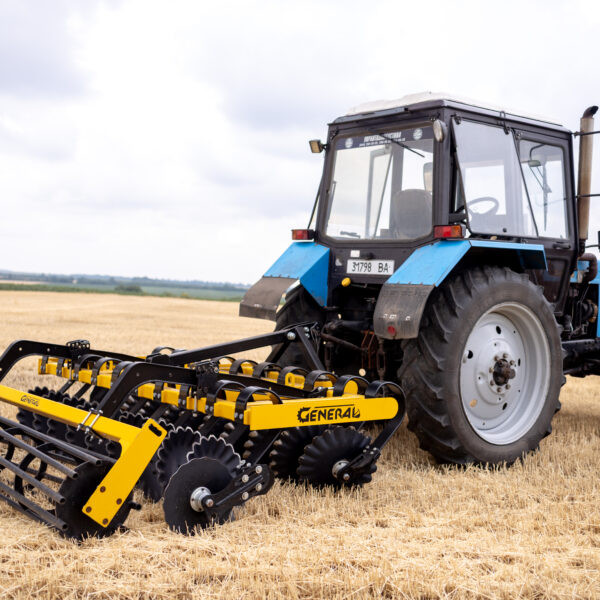

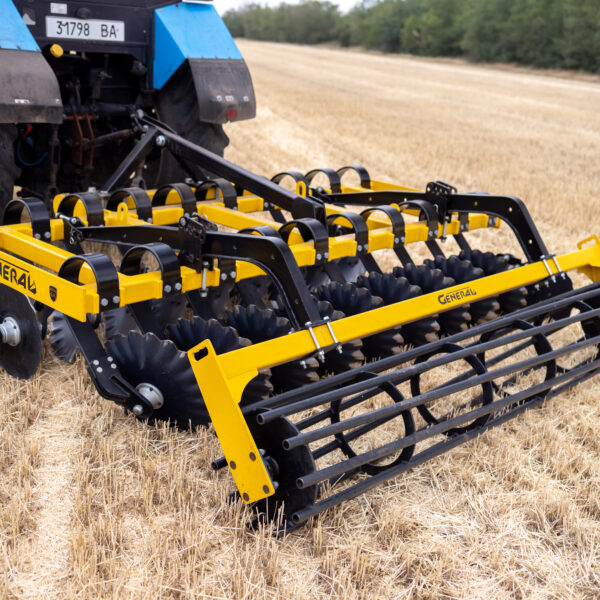

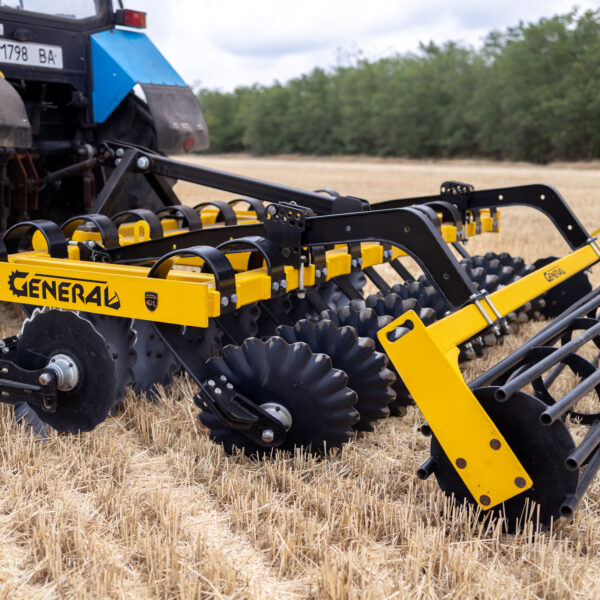

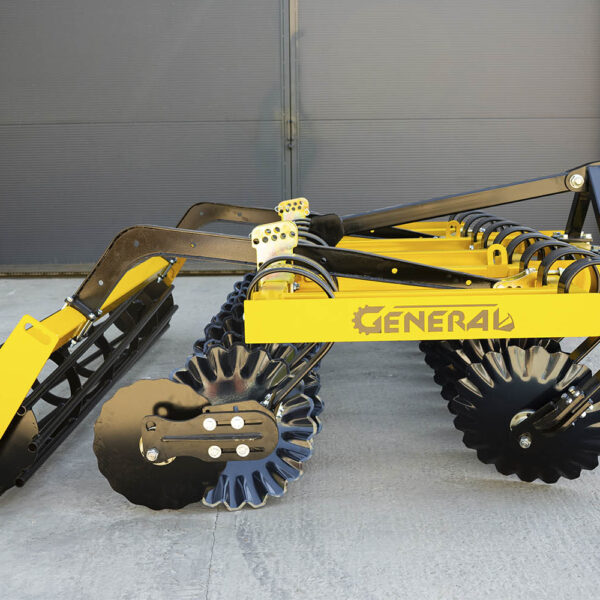

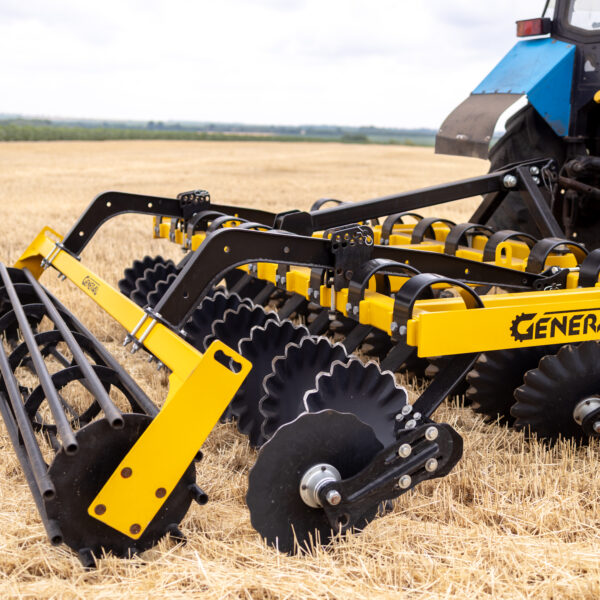

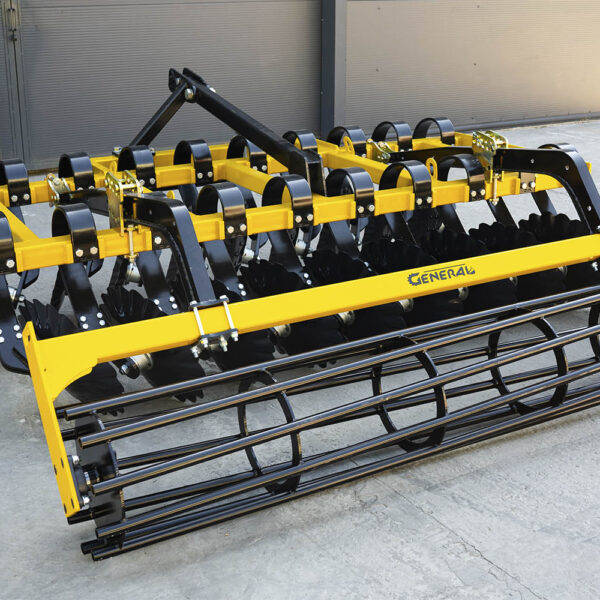

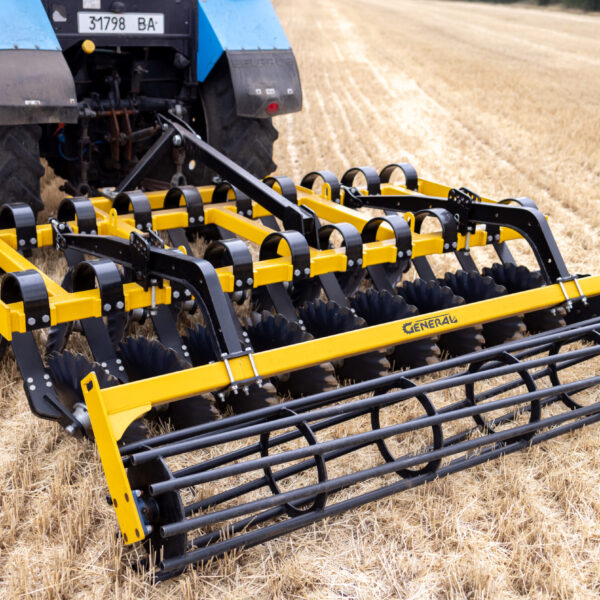

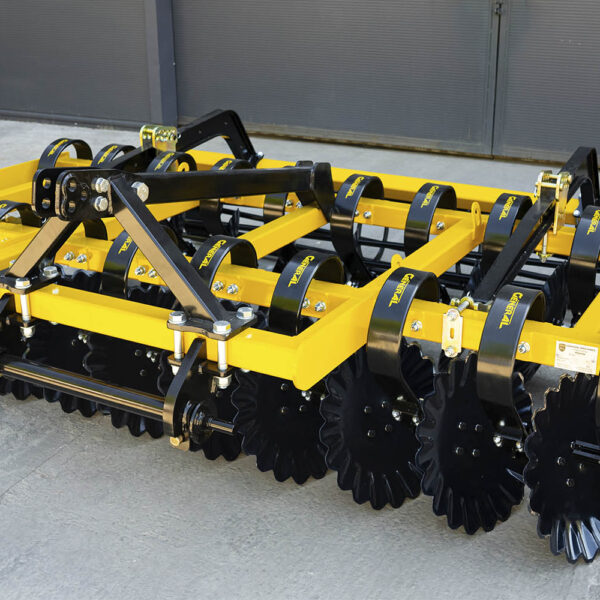

The disc harrow “General” LN2.6 is a universal mounted stubble cultivator (light disc harrow), designed for use with tractors of traction class 1.4 (MTZ, YUMZ, and their analogues). Thanks to its two-way (pendulum) tillage pattern, the unit performs efficiently on various soil types.
Main functions:
- Shredding of crop residues after harvest
- Loosening and leveling of the topsoil
- Improving soil structure and aeration
- Compacting the surface layer to retain moisture
- Weed control and prevention of germination
Technical specifications:
- Working width: 2.6 m
- Dimensions (L×W×H): 2.6 × 2.7 × 1.1 m
- Weight: 1000 kg
- Tillage depth: up to 10 cm (adjustable)

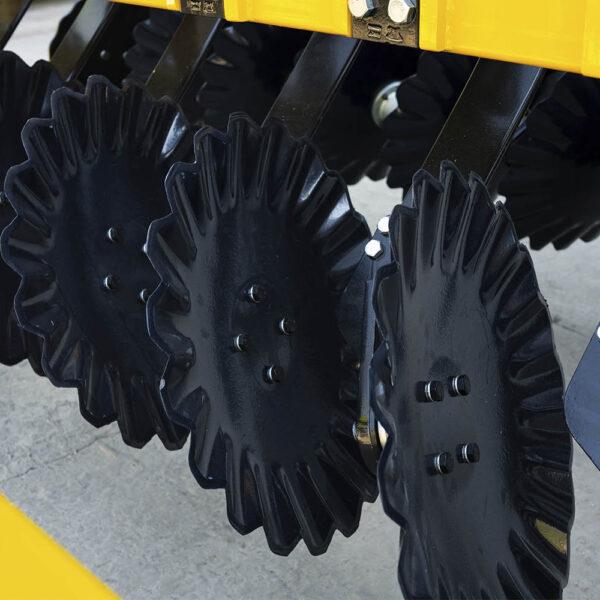

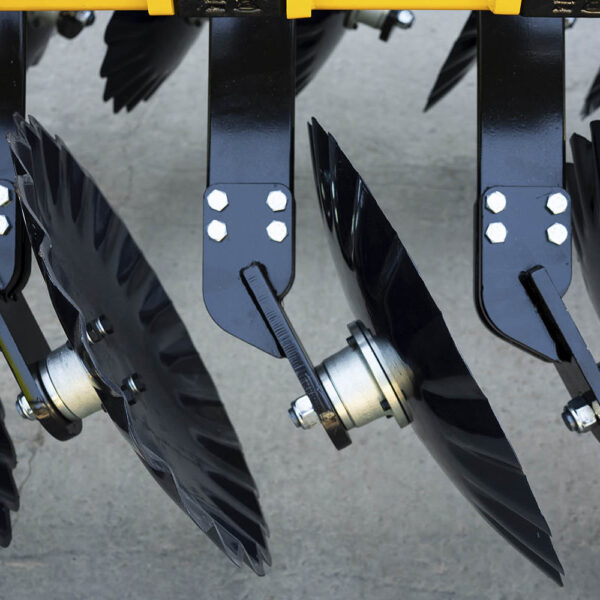

- Discs: Bellota Ø 510 mm (quantity — 18 pcs.)

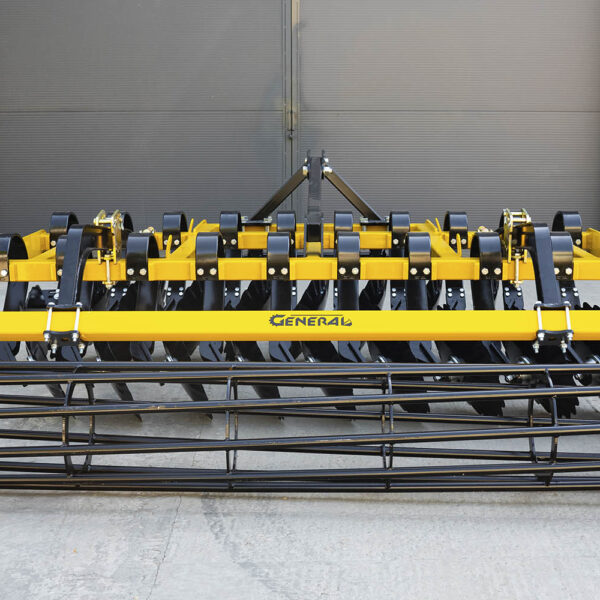

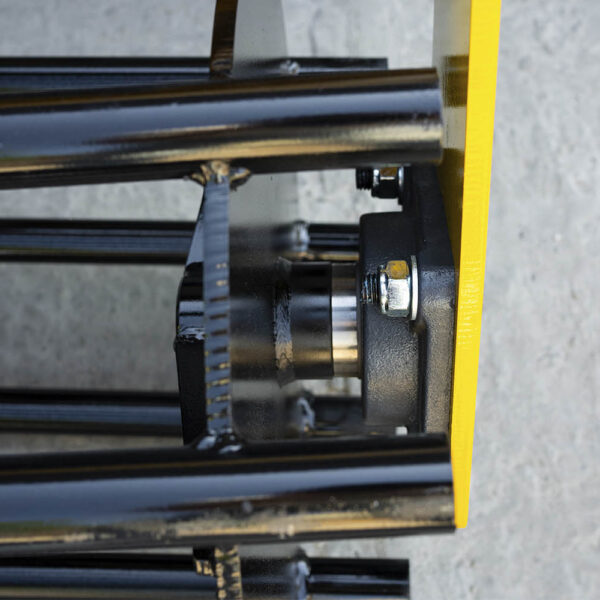

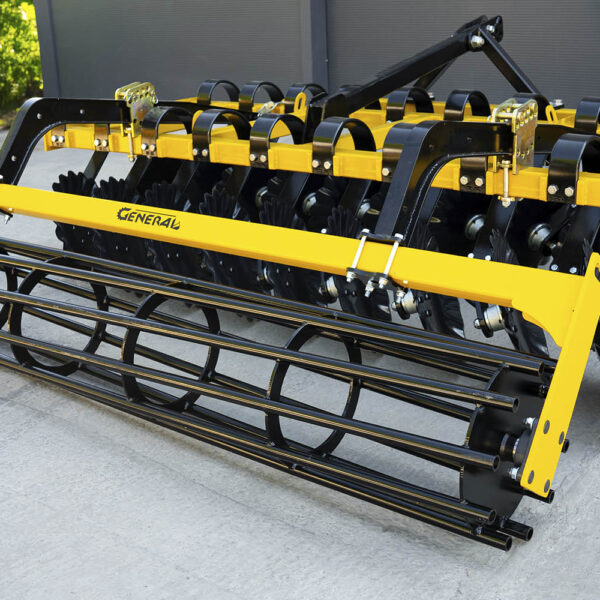

- Roller: Ø 410 mm — plate-spiral, tube-spiral, or double (optional)
Design features:
“General” machinery is built using a modular principle: all key components are replaceable and interchangeable. This simplifies maintenance and repair and allows the unit to be adapted to the needs of a specific farm.
With additional components, the unit can easily be converted into a trailed version with all the features of a full-fledged trailed implement.
“General” LN2.6 is a reliable solution that combines simplicity, efficiency, and high-quality soil treatment. Its use promotes soil fertility and increases crop yields.
